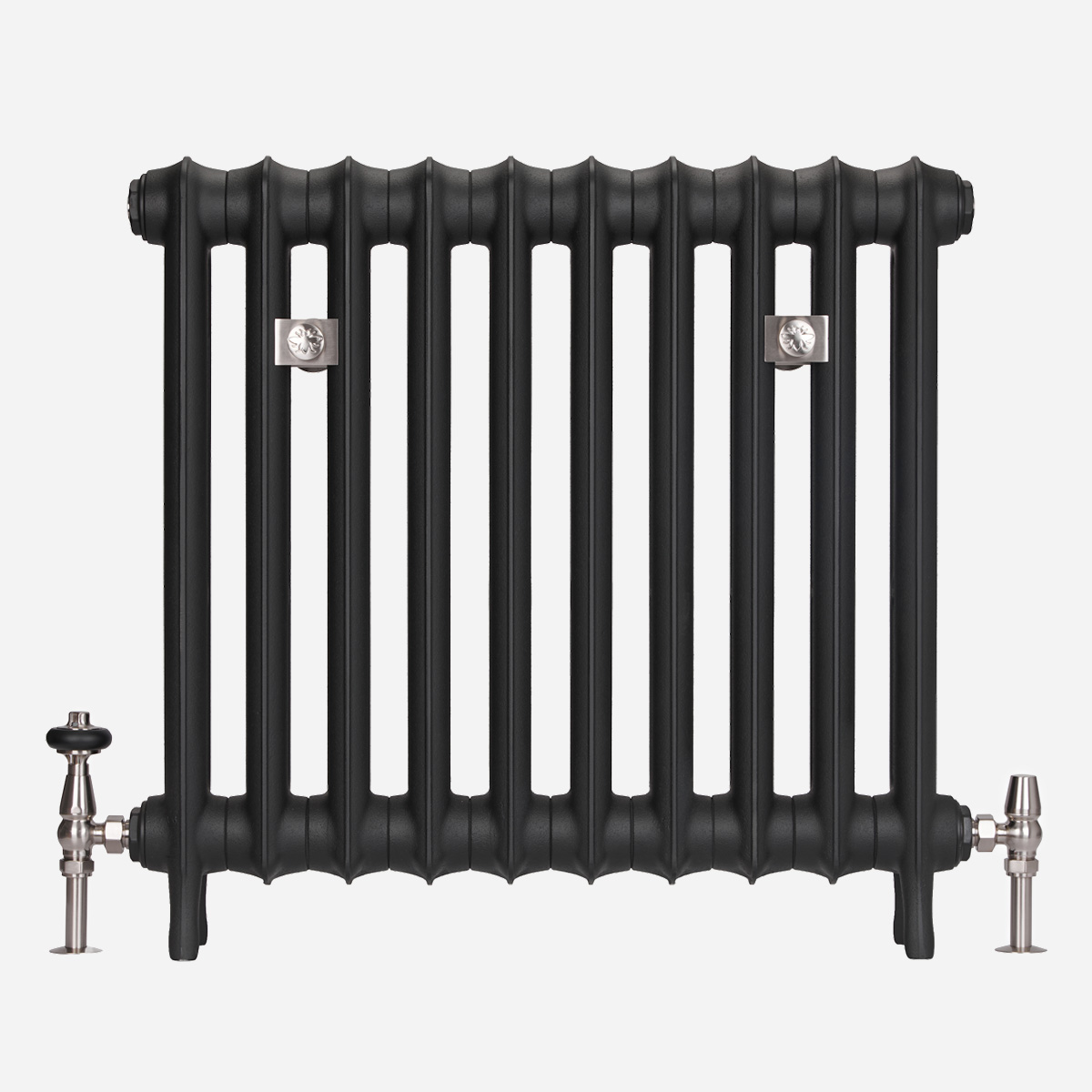

• Emmeline I 665mm slimline Castrads radiator in Matt Black finish

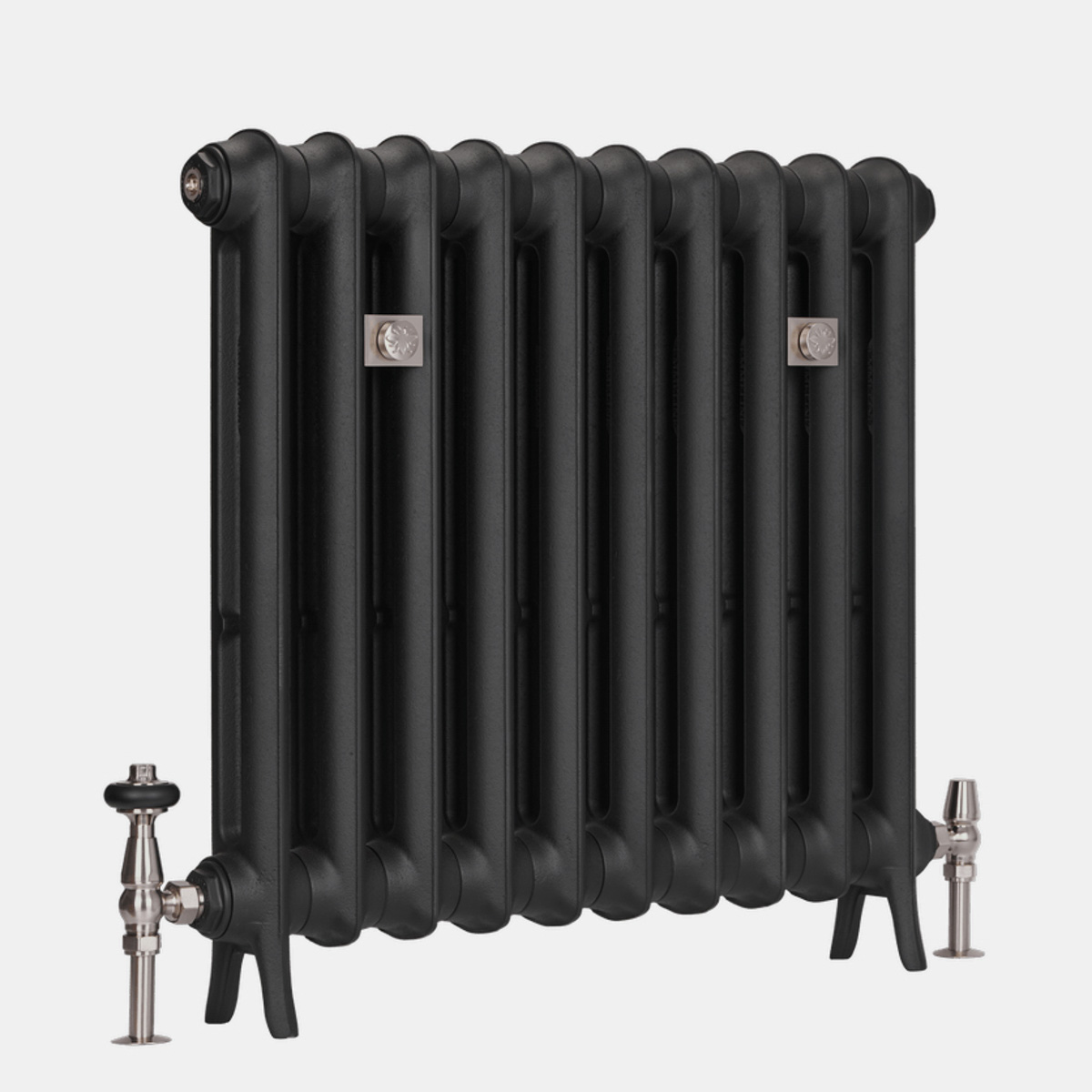

  • Emmeline I 27in in Matt Black with Windsor Angled TRV and Whitworth Wall Stay - angled view

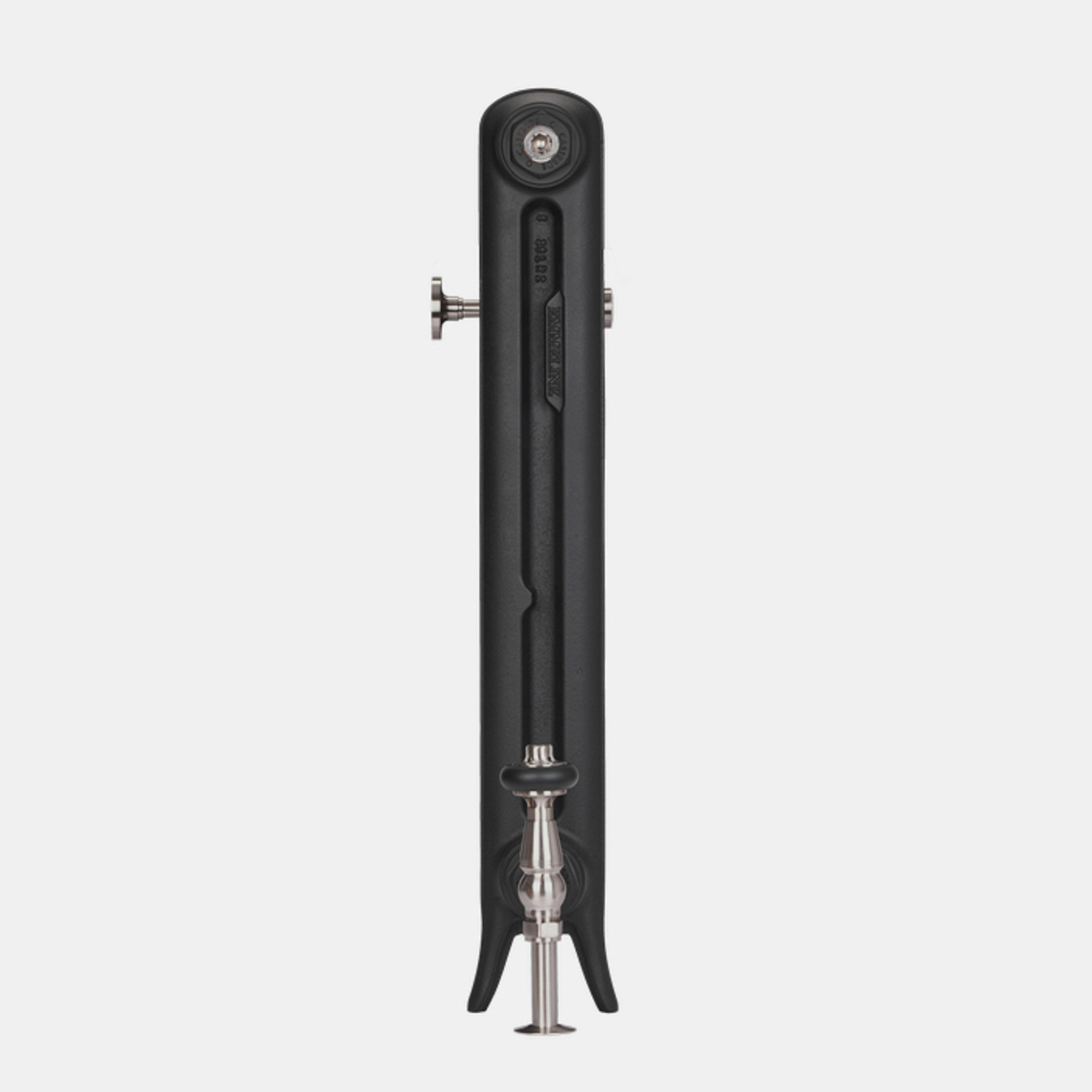

  • Emmeline I 27in in Matt Black with Windsor Angled TRV - side view
  • Emmeline I (all heights) - bleed valve view

Emmeline I 26in

From: $0.00

Technical specs at 3 sections long:

Length
Heat output (Hydronic)
Height
Heat output (Steam)
Depth
Delivered in
Build radiator
SKU: CI-EML1-665

Model Specifications

Label Attribute Value
A Height With Legs 26.2 in
B Bottom Inlet To Floor 3.9 in
C Max Section Depth 4.3 in
D Interaxis Distance 20.6 in
E Height Without Legs 23.9 in
F Section Length 2.6 in
G Mid Section Depth 3.5 in
- Internal Volume 0.05 gal
- Empty Leg Section Weight 10.58 lb
- Empty Mid Section Weight 9.92 lb
- EDR Per Section 1.69 ft²
- Hydronic Output (170ºF) 26 BTUs
- Steam Output (215ºF) 30 BTUs
Emmeline I 665mm - Single Section Technical Drawing - SVG

Sizes Available

SKU N
Secs		 Length
(L, mm)		 Output
(Hydronic, 170ºF)		 Output
(Steam, 215ºF)		 EDR Delivery
pieces		 Price
from
CI-EML1-665-3 3 9.0 in 77 BTUs 91 BTUs 5.1 ft² 3 $0.00
CI-EML1-665-4 4 11.7 in 103 BTUs 121 BTUs 6.8 ft² 3 $0.00
CI-EML1-665-5 5 14.3 in 129 BTUs 151 BTUs 8.5 ft² 2 $0.00
CI-EML1-665-6 6 16.9 in 154 BTUs 181 BTUs 10.1 ft² 1 $0.00
CI-EML1-665-7 7 19.5 in 180 BTUs 211 BTUs 11.8 ft² 1 $0.00
CI-EML1-665-8 8 22.1 in 206 BTUs 242 BTUs 13.5 ft² 1 $0.00
CI-EML1-665-9 9 24.7 in 231 BTUs 272 BTUs 15.2 ft² 3 $0.00
CI-EML1-665-10 10 27.4 in 257 BTUs 302 BTUs 16.9 ft² 2 $0.00
CI-EML1-665-11 11 30.0 in 283 BTUs 332 BTUs 18.6 ft² 1 $0.00
CI-EML1-665-12 12 32.6 in 308 BTUs 362 BTUs 20.3 ft² 1 $0.00
CI-EML1-665-13 13 35.2 in 334 BTUs 393 BTUs 22.0 ft² 1 $0.00
CI-EML1-665-14 14 37.8 in 360 BTUs 423 BTUs 23.7 ft² 1 $0.00
CI-EML1-665-15 15 40.4 in 386 BTUs 453 BTUs 25.4 ft² 1 $0.00
CI-EML1-665-16 16 43.1 in 411 BTUs 483 BTUs 27.0 ft² 1 $0.00
CI-EML1-665-17 17 45.7 in 437 BTUs 513 BTUs 28.7 ft² 1 $0.00
CI-EML1-665-18 18 48.3 in 463 BTUs 544 BTUs 30.4 ft² 3 $0.00
CI-EML1-665-19 19 50.9 in 488 BTUs 574 BTUs 32.1 ft² 3 $0.00
CI-EML1-665-20 20 53.5 in 514 BTUs 604 BTUs 33.8 ft² 2 $0.00
CI-EML1-665-21 21 56.1 in 540 BTUs 634 BTUs 35.5 ft² 3 $0.00
CI-EML1-665-22 22 58.8 in 566 BTUs 664 BTUs 37.2 ft² 2 $0.00
CI-EML1-665-23 23 61.4 in 591 BTUs 695 BTUs 38.9 ft² 1 $0.00
CI-EML1-665-24 24 64.0 in 617 BTUs 725 BTUs 40.6 ft² 1 $0.00
CI-EML1-665-25 25 66.6 in 643 BTUs 755 BTUs 42.3 ft² 1 $0.00
CI-EML1-665-26 26 69.3 in 668 BTUs 785 BTUs 43.9 ft² 2 $0.00
CI-EML1-665-27 27 71.9 in 694 BTUs 815 BTUs 45.6 ft² 2 $0.00
CI-EML1-665-28 28 74.5 in 720 BTUs 846 BTUs 47.3 ft² 3 $0.00
CI-EML1-665-29 29 77.1 in 746 BTUs 876 BTUs 49.0 ft² 3 $0.00
CI-EML1-665-30 30 79.7 in 771 BTUs 906 BTUs 50.7 ft² 1 $0.00
CI-EML1-665-31 31 82.3 in 797 BTUs 936 BTUs 52.4 ft² 3 $0.00
CI-EML1-665-32 32 85.0 in 823 BTUs 966 BTUs 54.1 ft² 3 $0.00
CI-EML1-665-33 33 87.6 in 848 BTUs 997 BTUs 55.8 ft² 3 $0.00
CI-EML1-665-34 34 90.2 in 874 BTUs 1027 BTUs 57.5 ft² 3 $0.00
CI-EML1-665-35 35 92.8 in 900 BTUs 1057 BTUs 59.2 ft² 3 $0.00
CI-EML1-665-36 36 95.4 in 925 BTUs 1087 BTUs 60.8 ft² 2 $0.00
CI-EML1-665-37 37 98.0 in 951 BTUs 1118 BTUs 62.5 ft² 2 $0.00
CI-EML1-665-38 38 100.7 in 977 BTUs 1148 BTUs 64.2 ft² 3 $0.00
CI-EML1-665-39 39 103.3 in 1003 BTUs 1178 BTUs 65.9 ft² 3 $0.00
CI-EML1-665-40 40 105.9 in 1028 BTUs 1208 BTUs 67.6 ft² 3 $0.00
Emmeline I 665mm - Single Section Technical Drawing - SVG
