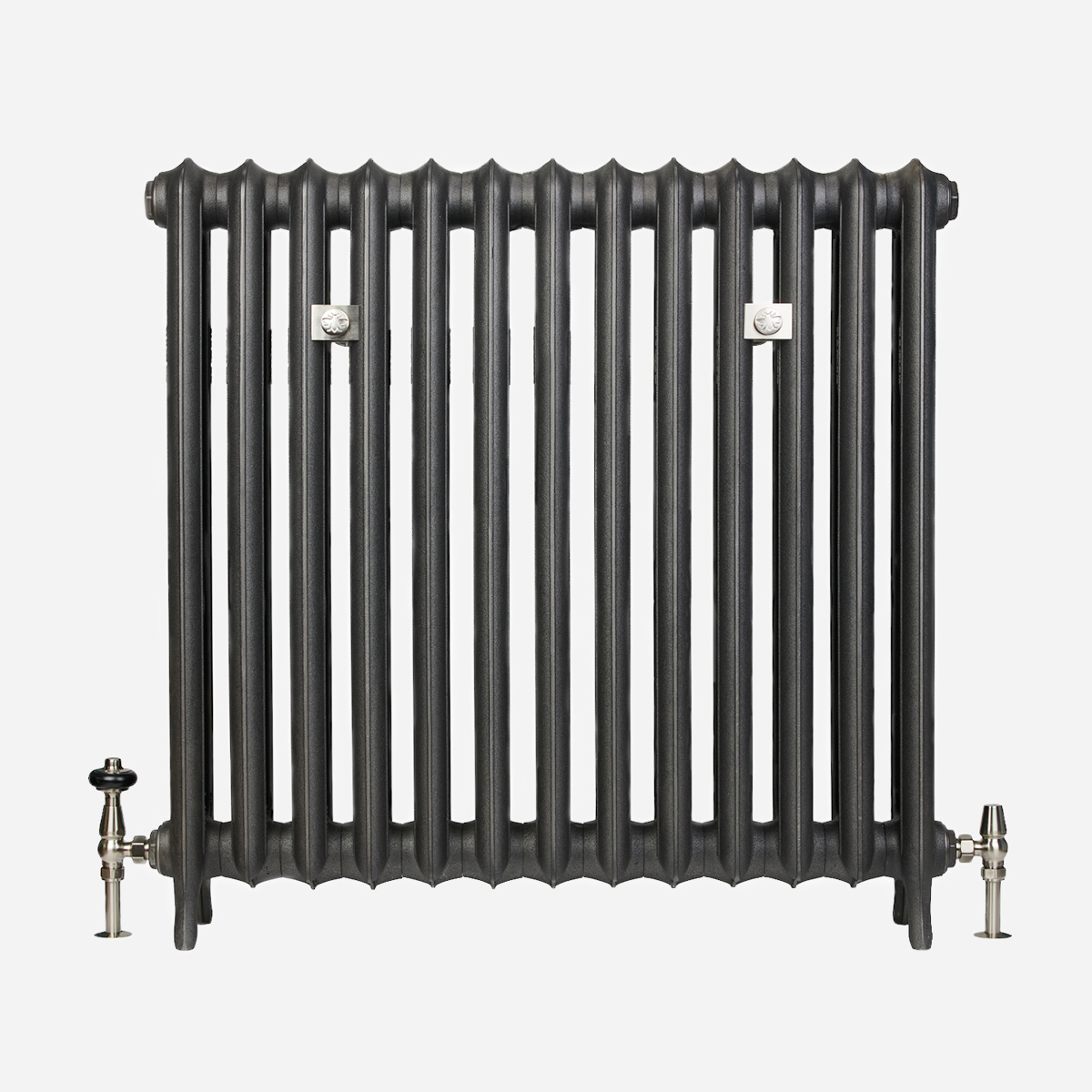

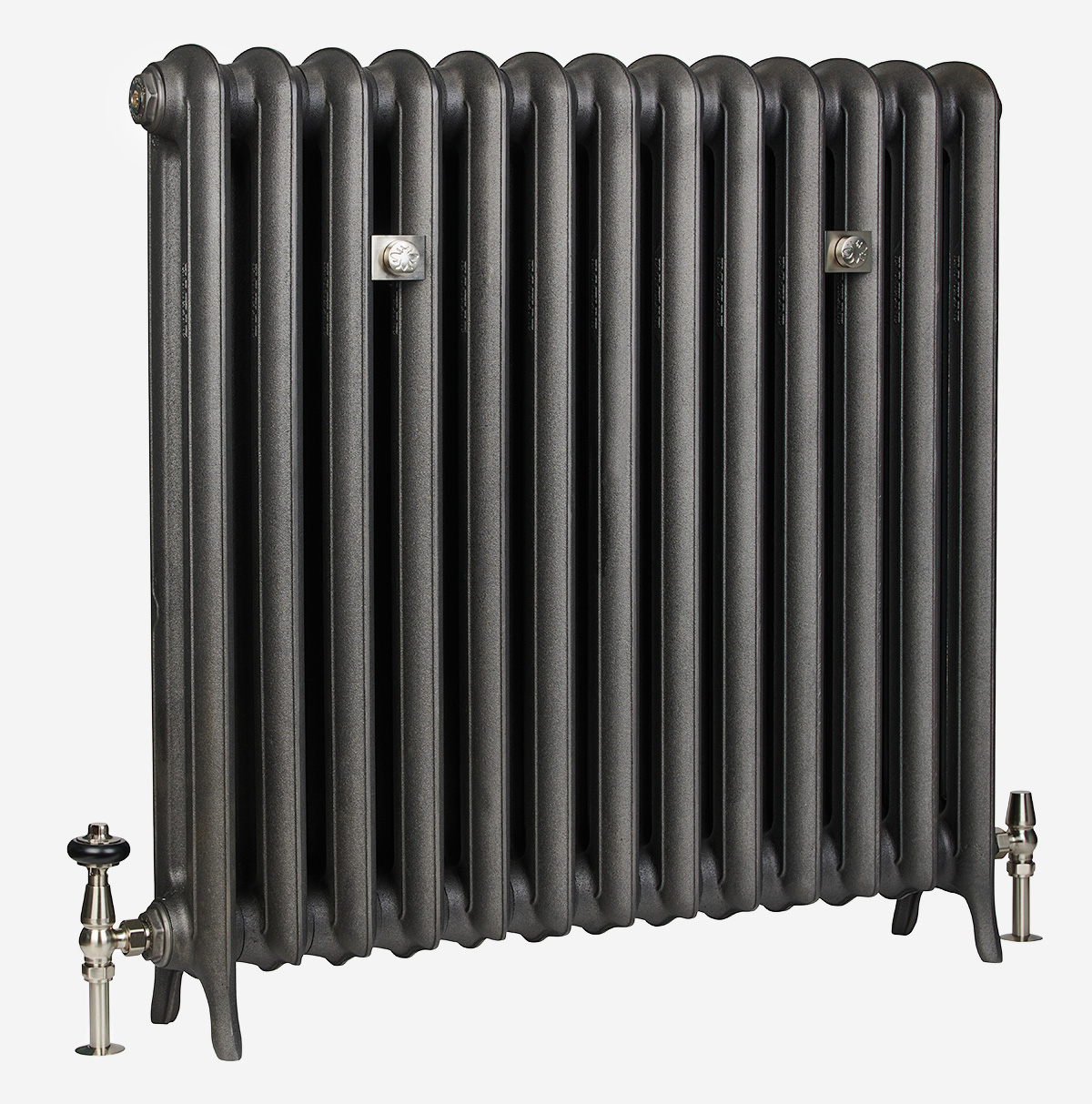

Emmeline II 34in
From: $831.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 3 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 34.3 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 6.7 in |
| D | Interaxis Distance | 28.5 in |
| E | Height Without Legs | 32.0 in |
| F | Section Length | 2.6 in |
| G | Mid Section Depth | 5.9 in |
| - | Internal Volume | 0.50 gal |
| - | Empty Leg Section Weight | 20.06 lb |
| - | Empty Mid Section Weight | 18.30 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 2.75 ft² |
| - | Hydronic Output (170ºF) | 412 BTUs |
| - | Steam Output (215ºF) | 659 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-EML2-870-3 | 3 | 9.0 in | 1236 BTUs | 1977 BTUs | 8.3 ft² | 1 | $831.00 |
| CI-EML2-870-4 | 4 | 11.7 in | 1648 BTUs | 2636 BTUs | 11.0 ft² | 1 | $943.00 |
| CI-EML2-870-5 | 5 | 14.3 in | 2060 BTUs | 3295 BTUs | 13.8 ft² | 2 | $1,135.00 |
| CI-EML2-870-6 | 6 | 16.9 in | 2472 BTUs | 3954 BTUs | 16.5 ft² | 2 | $1,247.00 |
| CI-EML2-870-7 | 7 | 19.5 in | 2884 BTUs | 4613 BTUs | 19.3 ft² | 1 | $1,279.00 |
| CI-EML2-870-8 | 8 | 22.1 in | 3296 BTUs | 5272 BTUs | 22.0 ft² | 1 | $1,391.00 |
| CI-EML2-870-9 | 9 | 24.7 in | 3708 BTUs | 5931 BTUs | 24.8 ft² | 3 | $1,583.00 |
| CI-EML2-870-10 | 10 | 27.4 in | 4120 BTUs | 6590 BTUs | 27.5 ft² | 4 | $1,695.00 |
| CI-EML2-870-11 | 11 | 30.0 in | 4532 BTUs | 7249 BTUs | 30.3 ft² | 2 | $1,807.00 |
| CI-EML2-870-12 | 12 | 32.6 in | 4944 BTUs | 7908 BTUs | 33.0 ft² | 4 | $1,919.00 |
| CI-EML2-870-13 | 13 | 35.2 in | 5356 BTUs | 8567 BTUs | 35.8 ft² | 1 | $1,951.00 |
| CI-EML2-870-14 | 14 | 37.8 in | 5768 BTUs | 9226 BTUs | 38.5 ft² | 1 | $2,063.00 |
| CI-EML2-870-15 | 15 | 40.4 in | 6180 BTUs | 9885 BTUs | 41.3 ft² | 1 | $2,175.00 |
| CI-EML2-870-16 | 16 | 43.1 in | 6592 BTUs | 10544 BTUs | 44.0 ft² | 3 | $2,367.00 |
| CI-EML2-870-17 | 17 | 45.7 in | 7004 BTUs | 11203 BTUs | 46.8 ft² | 3 | $2,479.00 |
| CI-EML2-870-18 | 18 | 48.3 in | 7416 BTUs | 11862 BTUs | 49.5 ft² | 3 | $2,591.00 |
| CI-EML2-870-19 | 19 | 50.9 in | 7828 BTUs | 12521 BTUs | 52.3 ft² | 1 | $2,623.00 |
| CI-EML2-870-20 | 20 | 53.5 in | 8240 BTUs | 13180 BTUs | 55.0 ft² | 2 | $2,815.00 |
| CI-EML2-870-21 | 21 | 56.1 in | 8652 BTUs | 13839 BTUs | 57.8 ft² | 2 | $2,927.00 |
| CI-EML2-870-22 | 22 | 58.8 in | 9064 BTUs | 14498 BTUs | 60.5 ft² | 2 | $3,039.00 |
| CI-EML2-870-23 | 23 | 61.4 in | 9476 BTUs | 15157 BTUs | 63.3 ft² | 2 | $3,151.00 |
| CI-EML2-870-24 | 24 | 64.0 in | 9888 BTUs | 15816 BTUs | 66.0 ft² | 2 | $3,263.00 |
| CI-EML2-870-25 | 25 | 66.6 in | 10300 BTUs | 16475 BTUs | 68.8 ft² | 2 | $3,375.00 |
| CI-EML2-870-26 | 26 | 69.3 in | 10712 BTUs | 17134 BTUs | 71.5 ft² | 2 | $3,487.00 |
| CI-EML2-870-27 | 27 | 71.9 in | 11124 BTUs | 17793 BTUs | 74.3 ft² | 3 | $3,599.00 |
| CI-EML2-870-28 | 28 | 74.5 in | 11536 BTUs | 18452 BTUs | 77.0 ft² | 3 | $3,711.00 |
| CI-EML2-870-29 | 29 | 77.1 in | 11948 BTUs | 19111 BTUs | 79.8 ft² | 3 | $3,823.00 |
| CI-EML2-870-30 | 30 | 79.7 in | 12360 BTUs | 19770 BTUs | 82.5 ft² | 3 | $3,935.00 |
| CI-EML2-870-31 | 31 | 82.3 in | 12772 BTUs | 20429 BTUs | 85.3 ft² | 3 | $4,047.00 |
| CI-EML2-870-32 | 32 | 85.0 in | 13184 BTUs | 21088 BTUs | 88.0 ft² | 3 | $4,159.00 |
| CI-EML2-870-33 | 33 | 87.6 in | 13596 BTUs | 21747 BTUs | 90.8 ft² | 1 | $4,191.00 |
| CI-EML2-870-34 | 34 | 90.2 in | 14008 BTUs | 22406 BTUs | 93.5 ft² | 3 | $4,383.00 |
| CI-EML2-870-35 | 35 | 92.8 in | 14420 BTUs | 23065 BTUs | 96.3 ft² | 3 | $4,495.00 |
| CI-EML2-870-36 | 36 | 95.4 in | 14832 BTUs | 23724 BTUs | 99.0 ft² | 2 | $4,607.00 |
| CI-EML2-870-37 | 37 | 98.0 in | 15244 BTUs | 24383 BTUs | 101.8 ft² | 3 | $4,719.00 |
| CI-EML2-870-38 | 38 | 100.7 in | 15656 BTUs | 25042 BTUs | 104.5 ft² | 4 | $4,831.00 |
| CI-EML2-870-39 | 39 | 103.3 in | 16068 BTUs | 25701 BTUs | 107.3 ft² | 1 | $4,863.00 |
| CI-EML2-870-40 | 40 | 105.9 in | 16480 BTUs | 26360 BTUs | 110.0 ft² | 1 | $4,975.00 |
