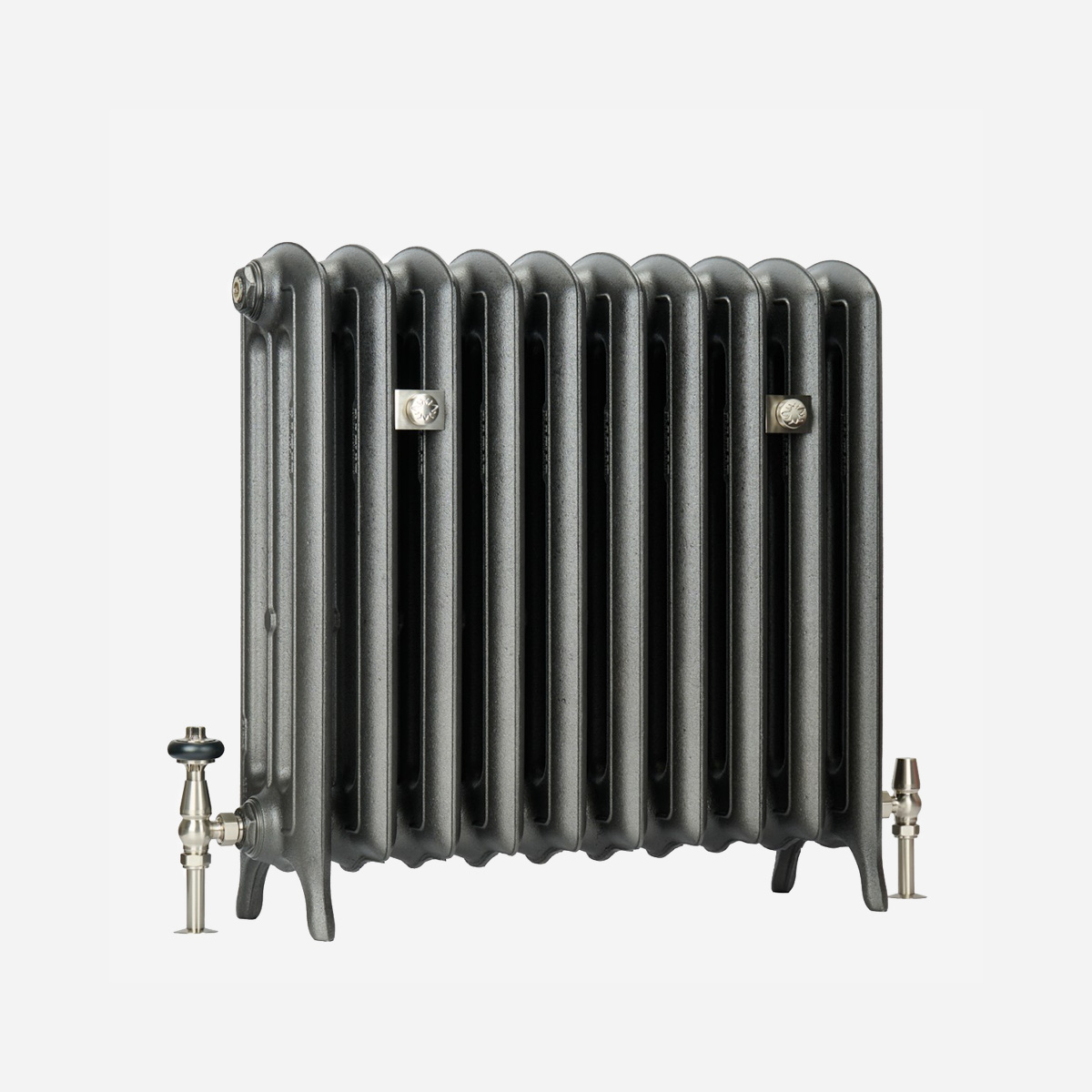

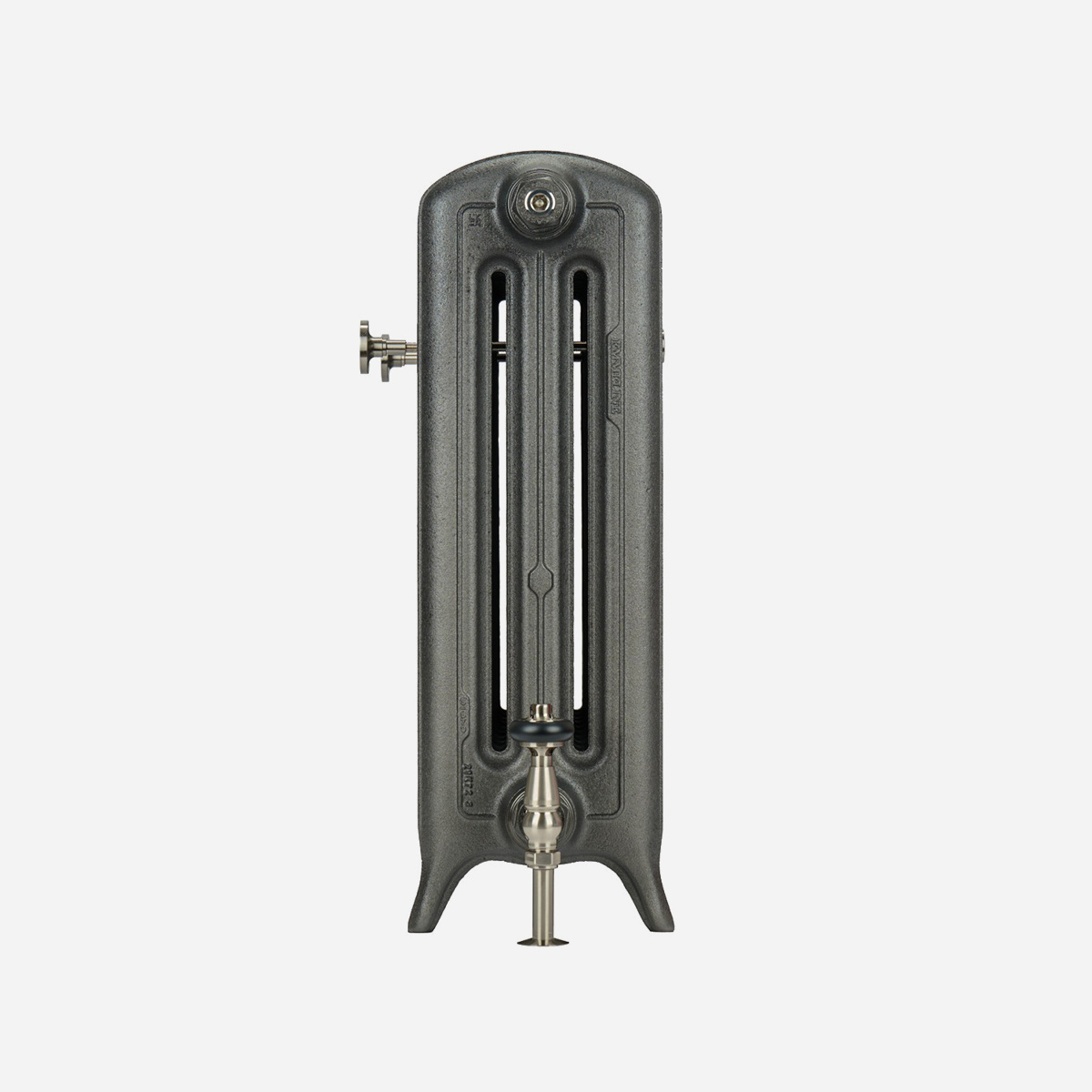

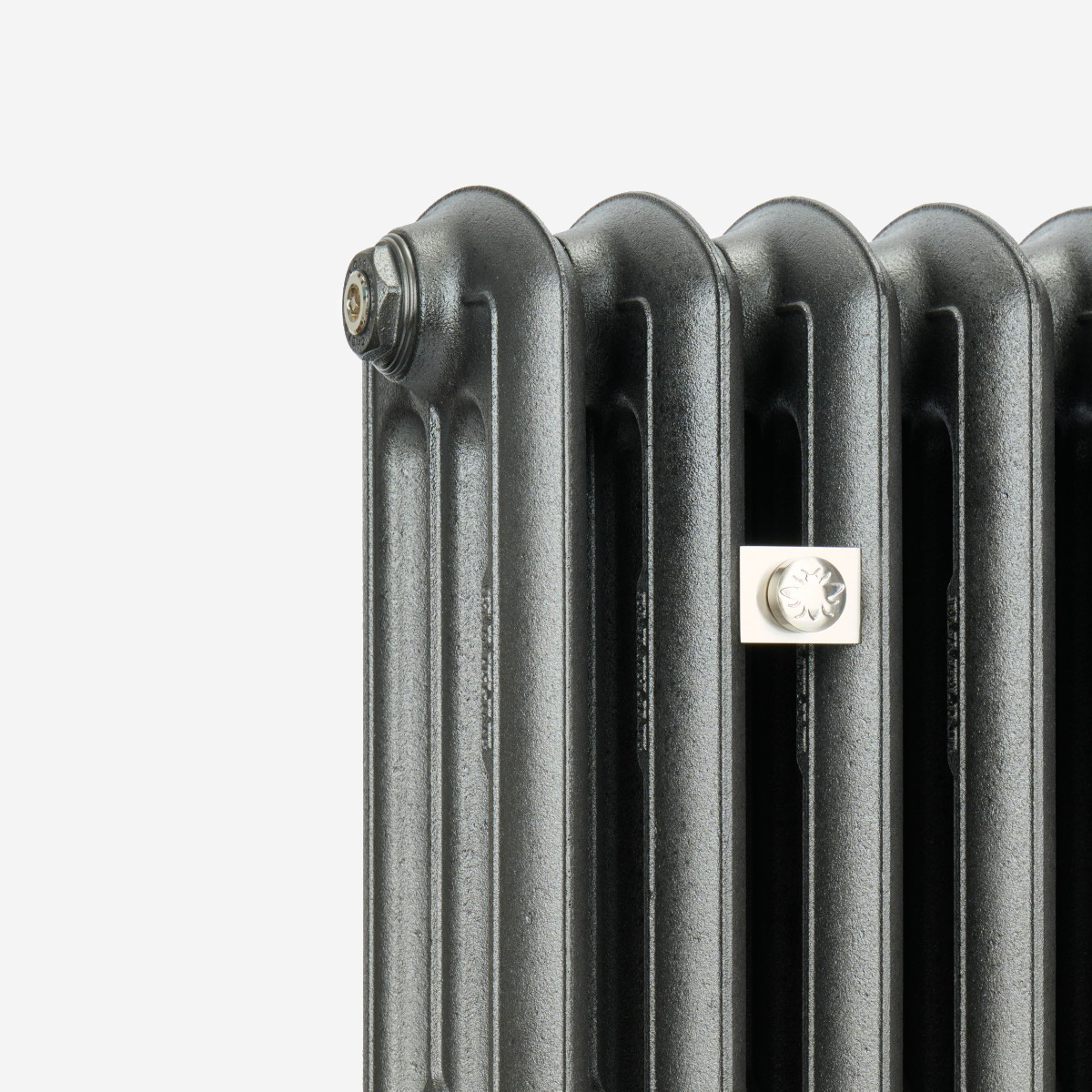

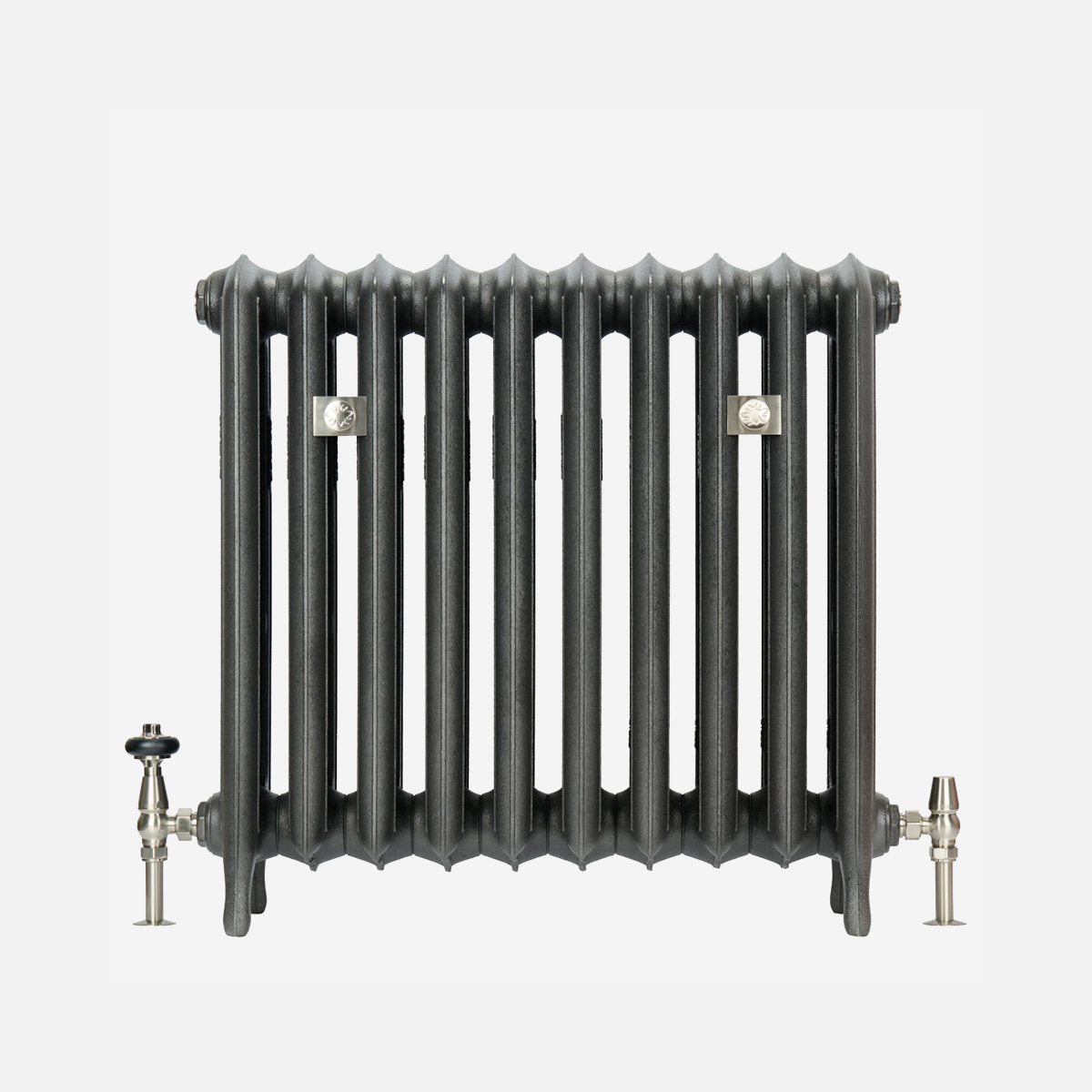

Emmeline III 26in
From: $921.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 26.4 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 9.1 in |
| D | Interaxis Distance | 20.6 in |
| E | Height Without Legs | 24.3 in |
| F | Section Length | 2.6 in |
| G | Mid Section Depth | 8.3 in |
| - | Internal Volume | 0.48 gal |
| - | Empty Leg Section Weight | 23.59 lb |
| - | Empty Mid Section Weight | 21.16 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 3 ft² |
| - | Hydronic Output (170ºF) | 449 BTUs |
| - | Steam Output (215ºF) | 719 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-EML3-670-3 | 3 | 9.0 in | 1347 BTUs | 2157 BTUs | 9.0 ft² | 1 | $921.00 |
| CI-EML3-670-4 | 4 | 11.7 in | 1796 BTUs | 2876 BTUs | 12.0 ft² | 2 | $1,143.00 |
| CI-EML3-670-5 | 5 | 14.3 in | 2245 BTUs | 3595 BTUs | 15.0 ft² | 2 | $1,285.00 |
| CI-EML3-670-6 | 6 | 16.9 in | 2694 BTUs | 4314 BTUs | 18.0 ft² | 1 | $1,347.00 |
| CI-EML3-670-7 | 7 | 19.5 in | 3143 BTUs | 5033 BTUs | 21.0 ft² | 2 | $1,569.00 |
| CI-EML3-670-8 | 8 | 22.1 in | 3592 BTUs | 5752 BTUs | 24.0 ft² | 2 | $1,711.00 |
| CI-EML3-670-9 | 9 | 24.7 in | 4041 BTUs | 6471 BTUs | 27.0 ft² | 2 | $1,853.00 |
| CI-EML3-670-10 | 10 | 27.4 in | 4490 BTUs | 7190 BTUs | 30.0 ft² | 4 | $1,995.00 |
| CI-EML3-670-11 | 11 | 30.0 in | 4939 BTUs | 7909 BTUs | 33.0 ft² | 4 | $2,137.00 |
| CI-EML3-670-12 | 12 | 32.6 in | 5388 BTUs | 8628 BTUs | 36.0 ft² | 2 | $2,279.00 |
| CI-EML3-670-13 | 13 | 35.2 in | 5837 BTUs | 9347 BTUs | 39.0 ft² | 2 | $2,421.00 |
| CI-EML3-670-14 | 14 | 37.8 in | 6286 BTUs | 10066 BTUs | 42.0 ft² | 4 | $2,563.00 |
| CI-EML3-670-15 | 15 | 40.4 in | 6735 BTUs | 10785 BTUs | 45.0 ft² | 4 | $2,705.00 |
| CI-EML3-670-16 | 16 | 43.1 in | 7184 BTUs | 11504 BTUs | 48.0 ft² | 3 | $2,847.00 |
| CI-EML3-670-17 | 17 | 45.7 in | 7633 BTUs | 12223 BTUs | 51.0 ft² | 1 | $2,909.00 |
| CI-EML3-670-18 | 18 | 48.3 in | 8082 BTUs | 12942 BTUs | 54.0 ft² | 3 | $3,131.00 |
| CI-EML3-670-19 | 19 | 50.9 in | 8531 BTUs | 13661 BTUs | 57.0 ft² | 3 | $3,273.00 |
| CI-EML3-670-20 | 20 | 53.5 in | 8980 BTUs | 14380 BTUs | 60.0 ft² | 3 | $3,415.00 |
| CI-EML3-670-21 | 21 | 56.1 in | 9429 BTUs | 15099 BTUs | 63.0 ft² | 3 | $3,557.00 |
| CI-EML3-670-22 | 22 | 58.8 in | 9878 BTUs | 15818 BTUs | 66.0 ft² | 3 | $3,699.00 |
| CI-EML3-670-23 | 23 | 61.4 in | 10327 BTUs | 16537 BTUs | 69.0 ft² | 3 | $3,841.00 |
| CI-EML3-670-24 | 24 | 64.0 in | 10776 BTUs | 17256 BTUs | 72.0 ft² | 3 | $3,983.00 |
| CI-EML3-670-25 | 25 | 66.6 in | 11225 BTUs | 17975 BTUs | 75.0 ft² | 3 | $4,125.00 |
| CI-EML3-670-26 | 26 | 69.3 in | 11674 BTUs | 18694 BTUs | 78.0 ft² | 4 | $4,267.00 |
| CI-EML3-670-27 | 27 | 71.9 in | 12123 BTUs | 19413 BTUs | 81.0 ft² | 4 | $4,409.00 |
| CI-EML3-670-28 | 28 | 74.5 in | 12572 BTUs | 20132 BTUs | 84.0 ft² | 1 | $4,471.00 |
| CI-EML3-670-29 | 29 | 77.1 in | 13021 BTUs | 20851 BTUs | 87.0 ft² | 1 | $4,613.00 |
| CI-EML3-670-30 | 30 | 79.7 in | 13470 BTUs | 21570 BTUs | 90.0 ft² | 1 | $4,755.00 |
| CI-EML3-670-31 | 31 | 82.3 in | 13919 BTUs | 22289 BTUs | 93.0 ft² | 1 | $4,897.00 |
| CI-EML3-670-32 | 32 | 85.0 in | 14368 BTUs | 23008 BTUs | 96.0 ft² | 1 | $5,039.00 |
| CI-EML3-670-33 | 33 | 87.6 in | 14817 BTUs | 23727 BTUs | 99.0 ft² | 4 | $5,261.00 |
| CI-EML3-670-34 | 34 | 90.2 in | 15266 BTUs | 24446 BTUs | 102.0 ft² | 4 | $5,403.00 |
| CI-EML3-670-35 | 35 | 92.8 in | 15715 BTUs | 25165 BTUs | 105.0 ft² | 2 | $5,545.00 |
| CI-EML3-670-36 | 36 | 95.4 in | 16164 BTUs | 25884 BTUs | 108.0 ft² | 2 | $5,687.00 |
| CI-EML3-670-37 | 37 | 98.0 in | 16613 BTUs | 26603 BTUs | 111.0 ft² | 1 | $5,749.00 |
| CI-EML3-670-38 | 38 | 100.7 in | 17062 BTUs | 27322 BTUs | 114.0 ft² | 3 | $5,971.00 |
| CI-EML3-670-39 | 39 | 103.3 in | 17511 BTUs | 28041 BTUs | 117.0 ft² | 3 | $6,113.00 |
| CI-EML3-670-40 | 40 | 105.9 in | 17960 BTUs | 28760 BTUs | 120.0 ft² | 2 | $6,255.00 |
