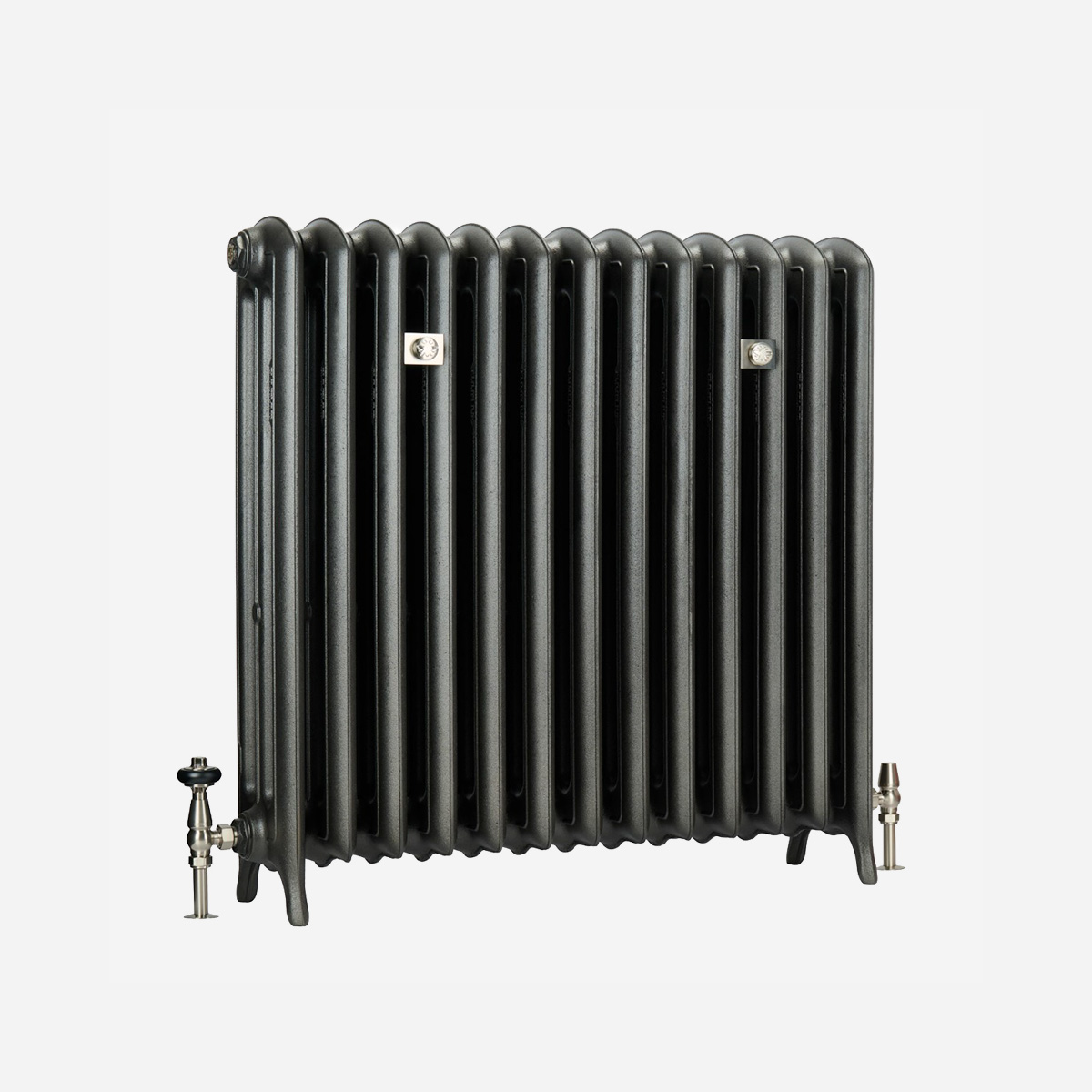

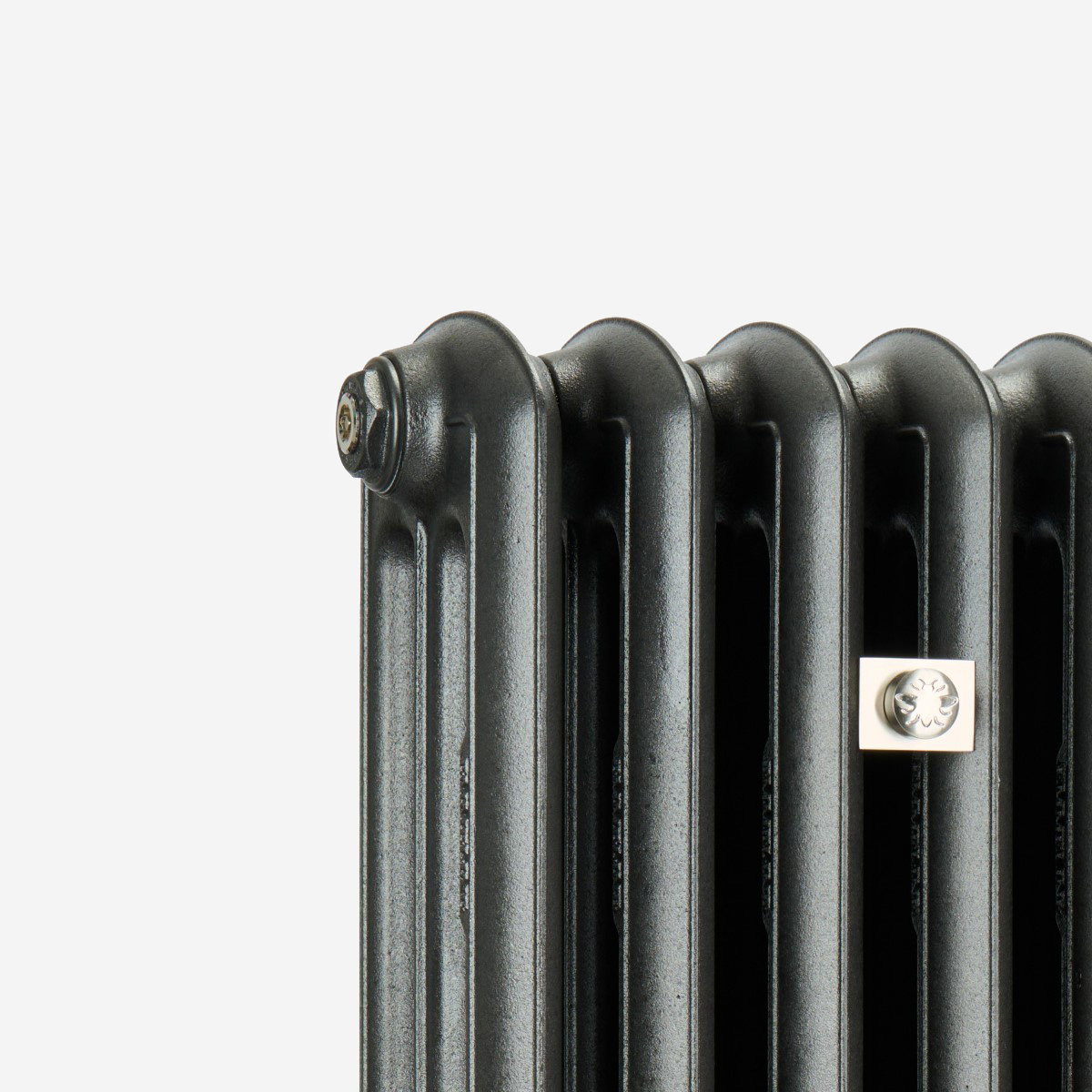

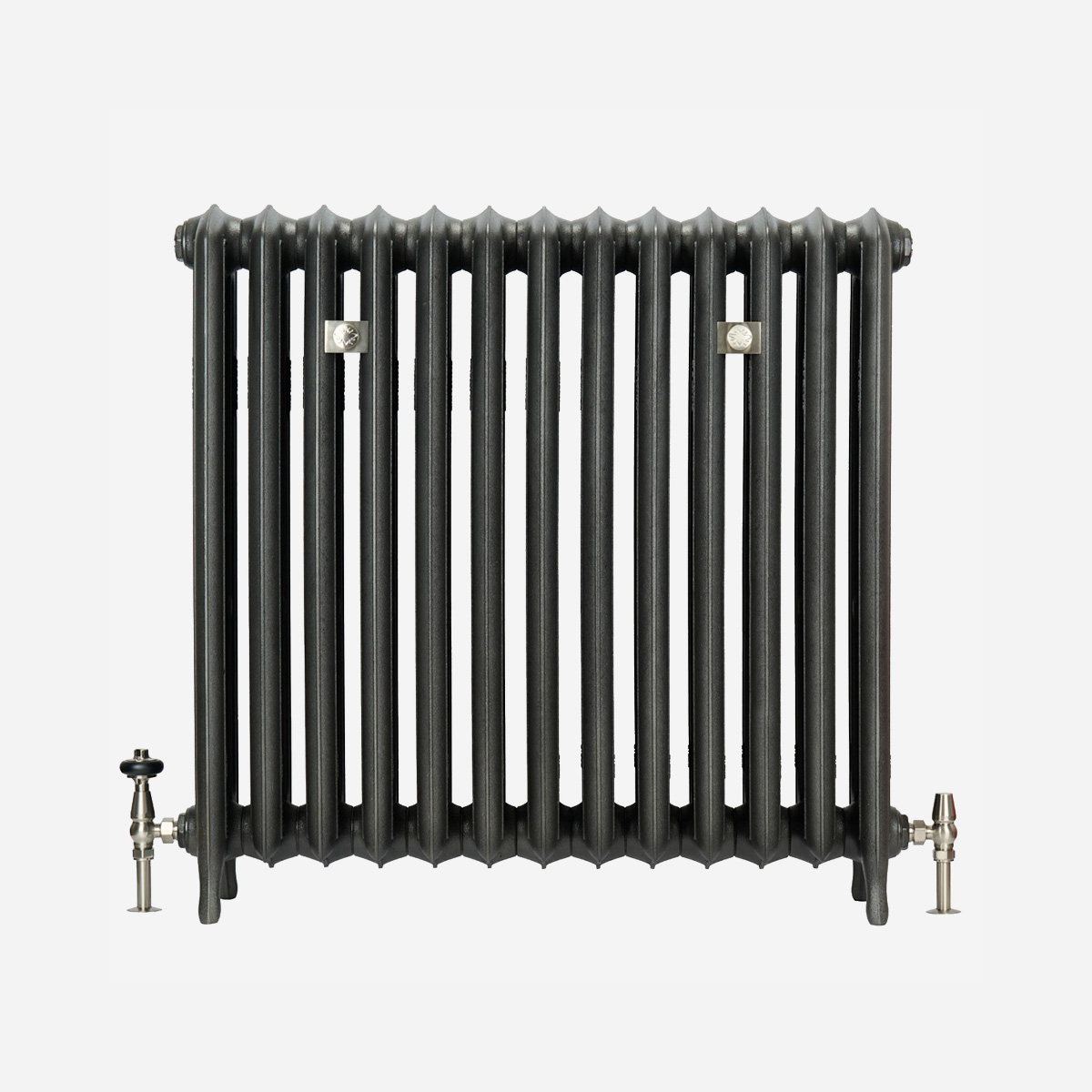

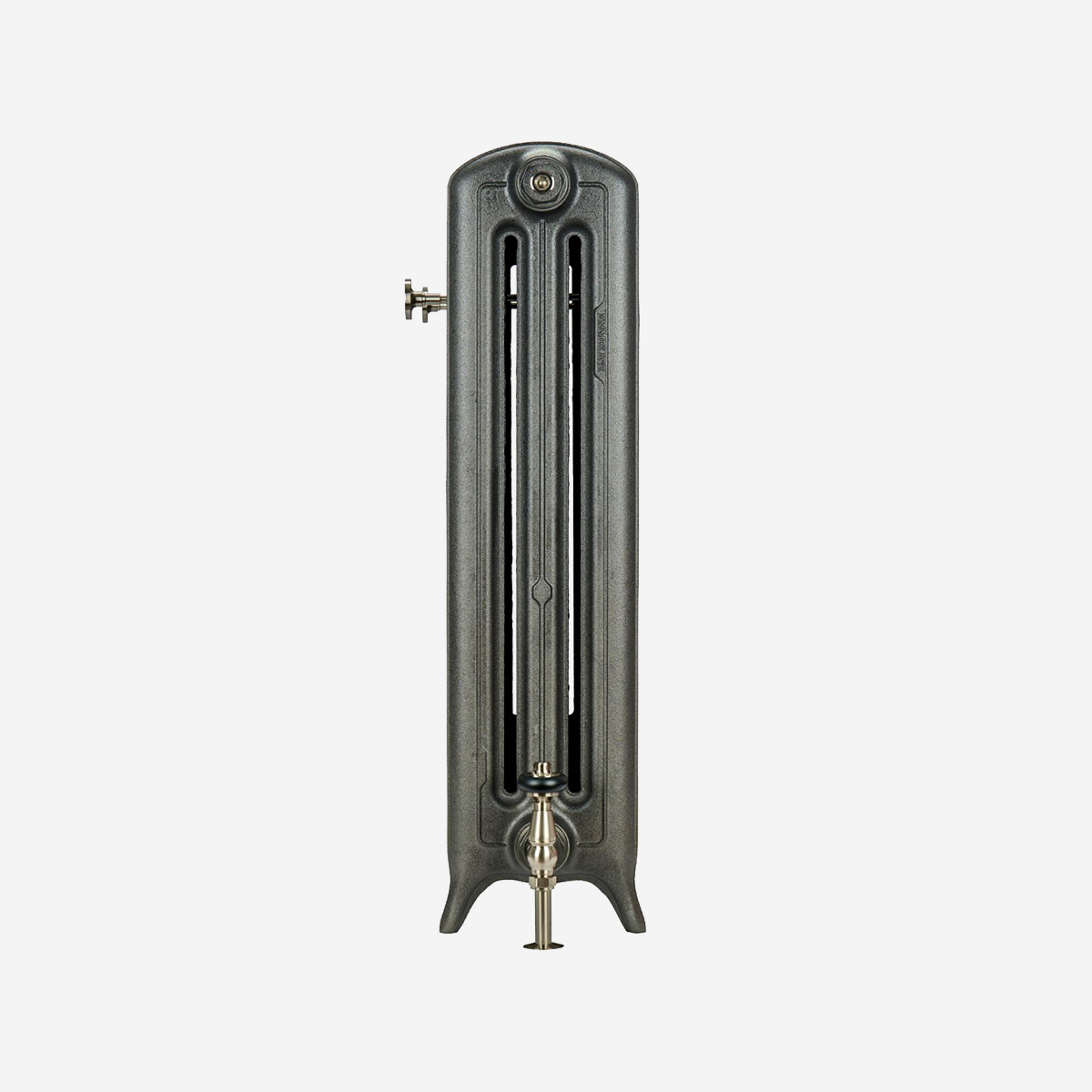

Emmeline III 34in
From: $1,091.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 34.3 in |
| B | Bottom Inlet To Floor | 3.9 in |
| C | Max Section Depth | 9.1 in |
| D | Interaxis Distance | 28.5 in |
| E | Height Without Legs | 32.1 in |
| F | Section Length | 2.6 in |
| G | Mid Section Depth | 8.3 in |
| - | Internal Volume | 0.61 gal |
| - | Empty Leg Section Weight | 29.98 lb |
| - | Empty Mid Section Weight | 27.56 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 3.96 ft² |
| - | Hydronic Output (170ºF) | 594 BTUs |
| - | Steam Output (215ºF) | 951 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-EML3-870-3 | 3 | 9.0 in | 1782 BTUs | 2853 BTUs | 11.9 ft² | 4 | $1,091.00 |
| CI-EML3-870-4 | 4 | 11.7 in | 2376 BTUs | 3804 BTUs | 15.8 ft² | 3 | $1,263.00 |
| CI-EML3-870-5 | 5 | 14.3 in | 2970 BTUs | 4755 BTUs | 19.8 ft² | 3 | $1,435.00 |
| CI-EML3-870-6 | 6 | 16.9 in | 3564 BTUs | 5706 BTUs | 23.8 ft² | 2 | $1,607.00 |
| CI-EML3-870-7 | 7 | 19.5 in | 4158 BTUs | 6657 BTUs | 27.7 ft² | 3 | $1,779.00 |
| CI-EML3-870-8 | 8 | 22.1 in | 4752 BTUs | 7608 BTUs | 31.7 ft² | 3 | $1,951.00 |
| CI-EML3-870-9 | 9 | 24.7 in | 5346 BTUs | 8559 BTUs | 35.6 ft² | 3 | $2,123.00 |
| CI-EML3-870-10 | 10 | 27.4 in | 5940 BTUs | 9510 BTUs | 39.6 ft² | 4 | $2,295.00 |
| CI-EML3-870-11 | 11 | 30.0 in | 6534 BTUs | 10461 BTUs | 43.6 ft² | 4 | $2,467.00 |
| CI-EML3-870-12 | 12 | 32.6 in | 7128 BTUs | 11412 BTUs | 47.5 ft² | 4 | $2,639.00 |
| CI-EML3-870-13 | 13 | 35.2 in | 7722 BTUs | 12363 BTUs | 51.5 ft² | 1 | $2,731.00 |
| CI-EML3-870-14 | 14 | 37.8 in | 8316 BTUs | 13314 BTUs | 55.4 ft² | 5 | $2,983.00 |
| CI-EML3-870-15 | 15 | 40.4 in | 8910 BTUs | 14265 BTUs | 59.4 ft² | 5 | $3,155.00 |
| CI-EML3-870-16 | 16 | 43.1 in | 9504 BTUs | 15216 BTUs | 63.4 ft² | 5 | $3,327.00 |
| CI-EML3-870-17 | 17 | 45.7 in | 10098 BTUs | 16167 BTUs | 67.3 ft² | 5 | $3,499.00 |
| CI-EML3-870-18 | 18 | 48.3 in | 10692 BTUs | 17118 BTUs | 71.3 ft² | 5 | $3,671.00 |
| CI-EML3-870-19 | 19 | 50.9 in | 11286 BTUs | 18069 BTUs | 75.2 ft² | 1 | $3,763.00 |
| CI-EML3-870-20 | 20 | 53.5 in | 11880 BTUs | 19020 BTUs | 79.2 ft² | 4 | $4,015.00 |
| CI-EML3-870-21 | 21 | 56.1 in | 12474 BTUs | 19971 BTUs | 83.2 ft² | 1 | $4,107.00 |
| CI-EML3-870-22 | 22 | 58.8 in | 13068 BTUs | 20922 BTUs | 87.1 ft² | 1 | $4,279.00 |
| CI-EML3-870-23 | 23 | 61.4 in | 13662 BTUs | 21873 BTUs | 91.1 ft² | 1 | $4,451.00 |
| CI-EML3-870-24 | 24 | 64.0 in | 14256 BTUs | 22824 BTUs | 95.0 ft² | 2 | $4,703.00 |
| CI-EML3-870-25 | 25 | 66.6 in | 14850 BTUs | 23775 BTUs | 99.0 ft² | 5 | $4,875.00 |
| CI-EML3-870-26 | 26 | 69.3 in | 15444 BTUs | 24726 BTUs | 103.0 ft² | 5 | $5,047.00 |
| CI-EML3-870-27 | 27 | 71.9 in | 16038 BTUs | 25677 BTUs | 106.9 ft² | 5 | $5,219.00 |
| CI-EML3-870-28 | 28 | 74.5 in | 16632 BTUs | 26628 BTUs | 110.9 ft² | 3 | $5,391.00 |
| CI-EML3-870-29 | 29 | 77.1 in | 17226 BTUs | 27579 BTUs | 114.8 ft² | 1 | $5,483.00 |
| CI-EML3-870-30 | 30 | 79.7 in | 17820 BTUs | 28530 BTUs | 118.8 ft² | 2 | $5,735.00 |
| CI-EML3-870-31 | 31 | 82.3 in | 18414 BTUs | 29481 BTUs | 122.8 ft² | 2 | $5,907.00 |
| CI-EML3-870-32 | 32 | 85.0 in | 19008 BTUs | 30432 BTUs | 126.7 ft² | 2 | $6,079.00 |
| CI-EML3-870-33 | 33 | 87.6 in | 19602 BTUs | 31383 BTUs | 130.7 ft² | 2 | $6,251.00 |
| CI-EML3-870-34 | 34 | 90.2 in | 20196 BTUs | 32334 BTUs | 134.6 ft² | 2 | $6,423.00 |
| CI-EML3-870-35 | 35 | 92.8 in | 20790 BTUs | 33285 BTUs | 138.6 ft² | 2 | $6,595.00 |
| CI-EML3-870-36 | 36 | 95.4 in | 21384 BTUs | 34236 BTUs | 142.6 ft² | 3 | $6,767.00 |
| CI-EML3-870-37 | 37 | 98.0 in | 21978 BTUs | 35187 BTUs | 146.5 ft² | 3 | $6,939.00 |
| CI-EML3-870-38 | 38 | 100.7 in | 22572 BTUs | 36138 BTUs | 150.5 ft² | 4 | $7,111.00 |
| CI-EML3-870-39 | 39 | 103.3 in | 23166 BTUs | 37089 BTUs | 154.4 ft² | 4 | $7,283.00 |
| CI-EML3-870-40 | 40 | 105.9 in | 23760 BTUs | 38040 BTUs | 158.4 ft² | 4 | $7,455.00 |
