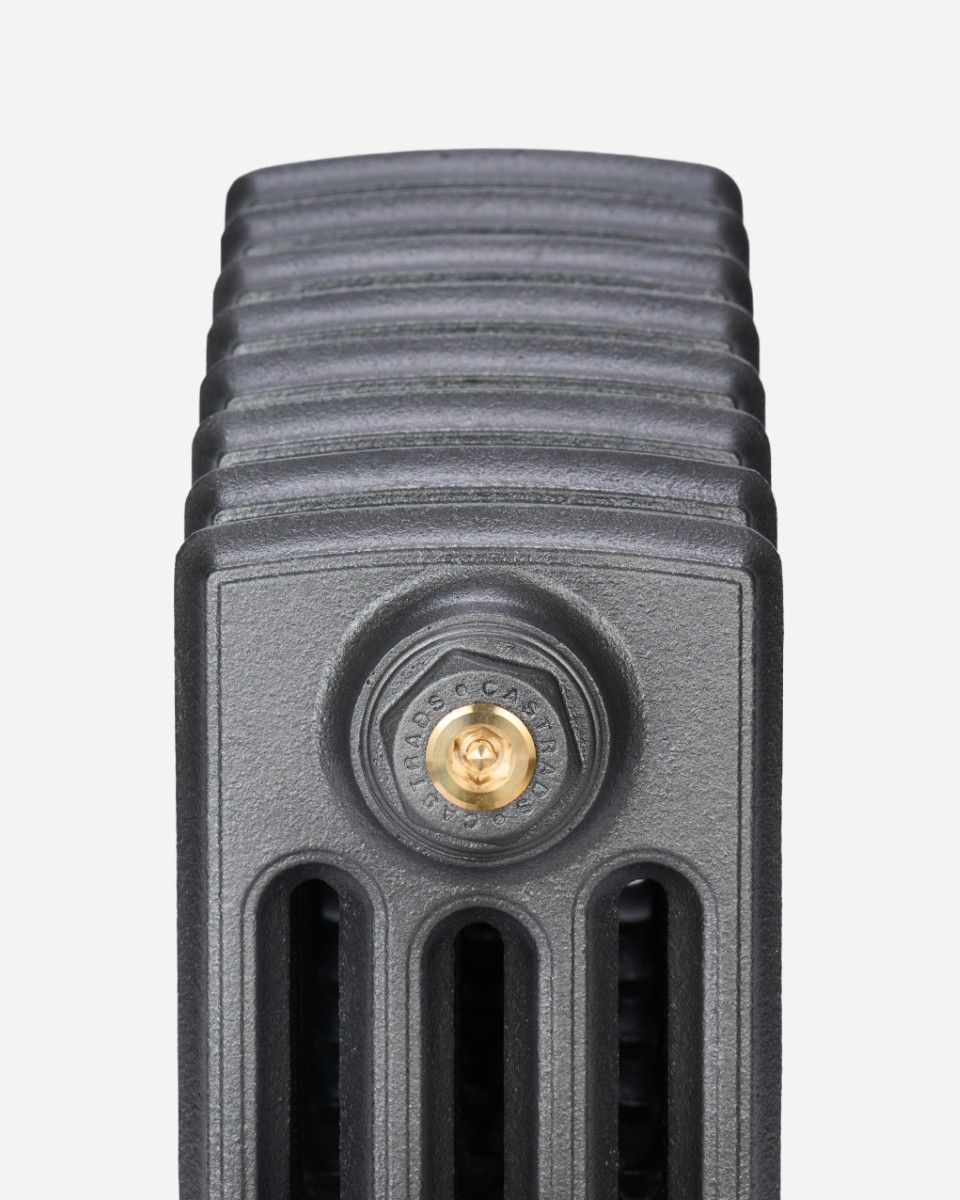

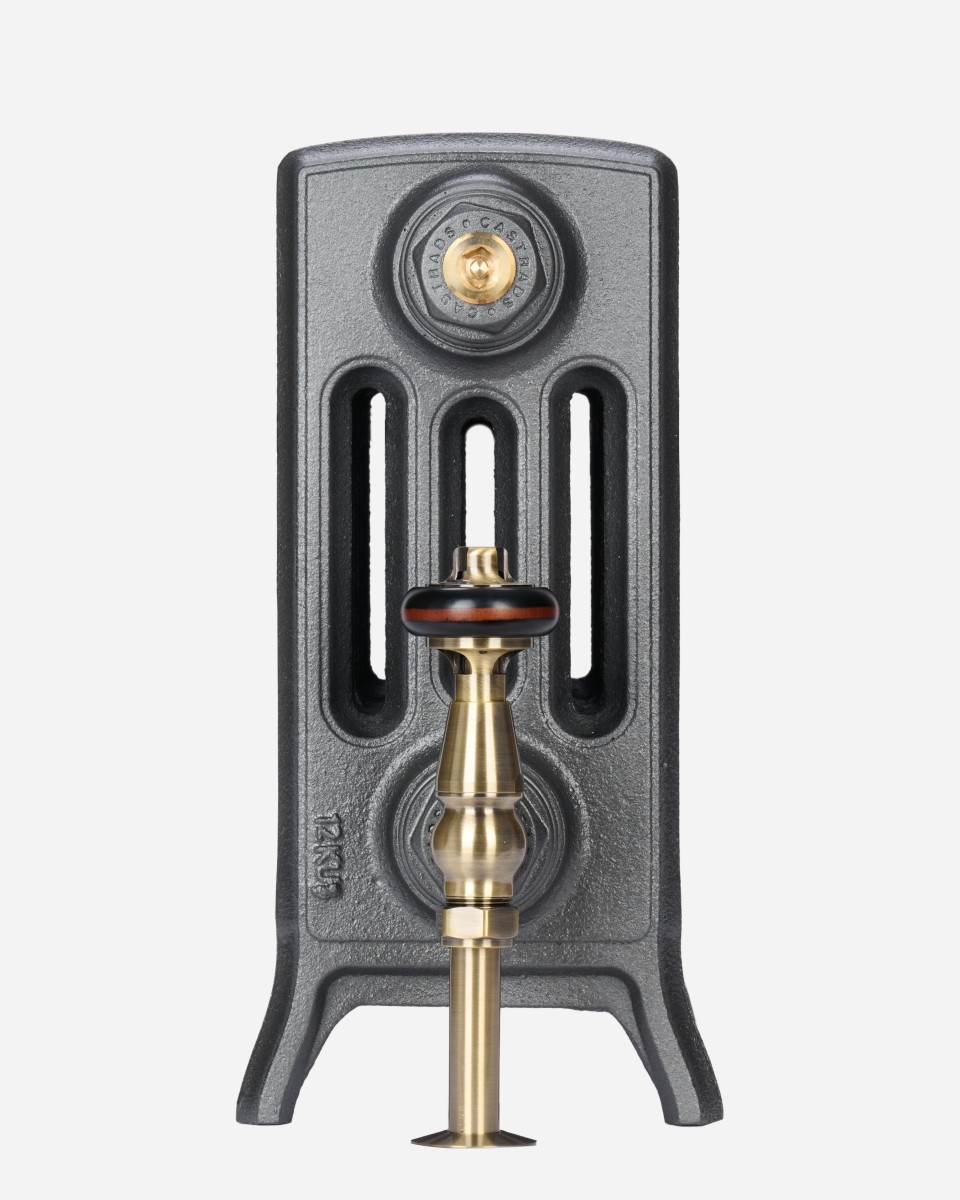

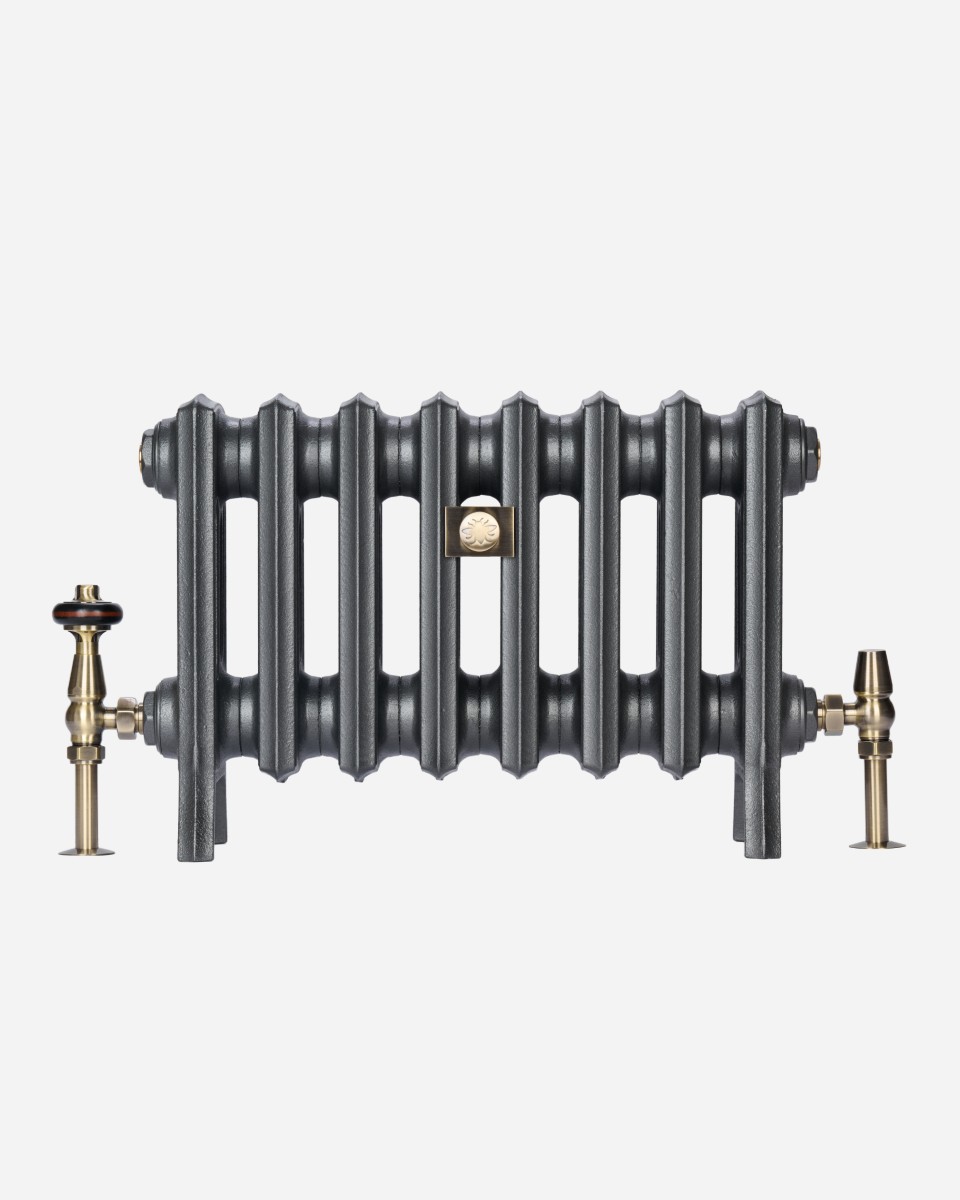

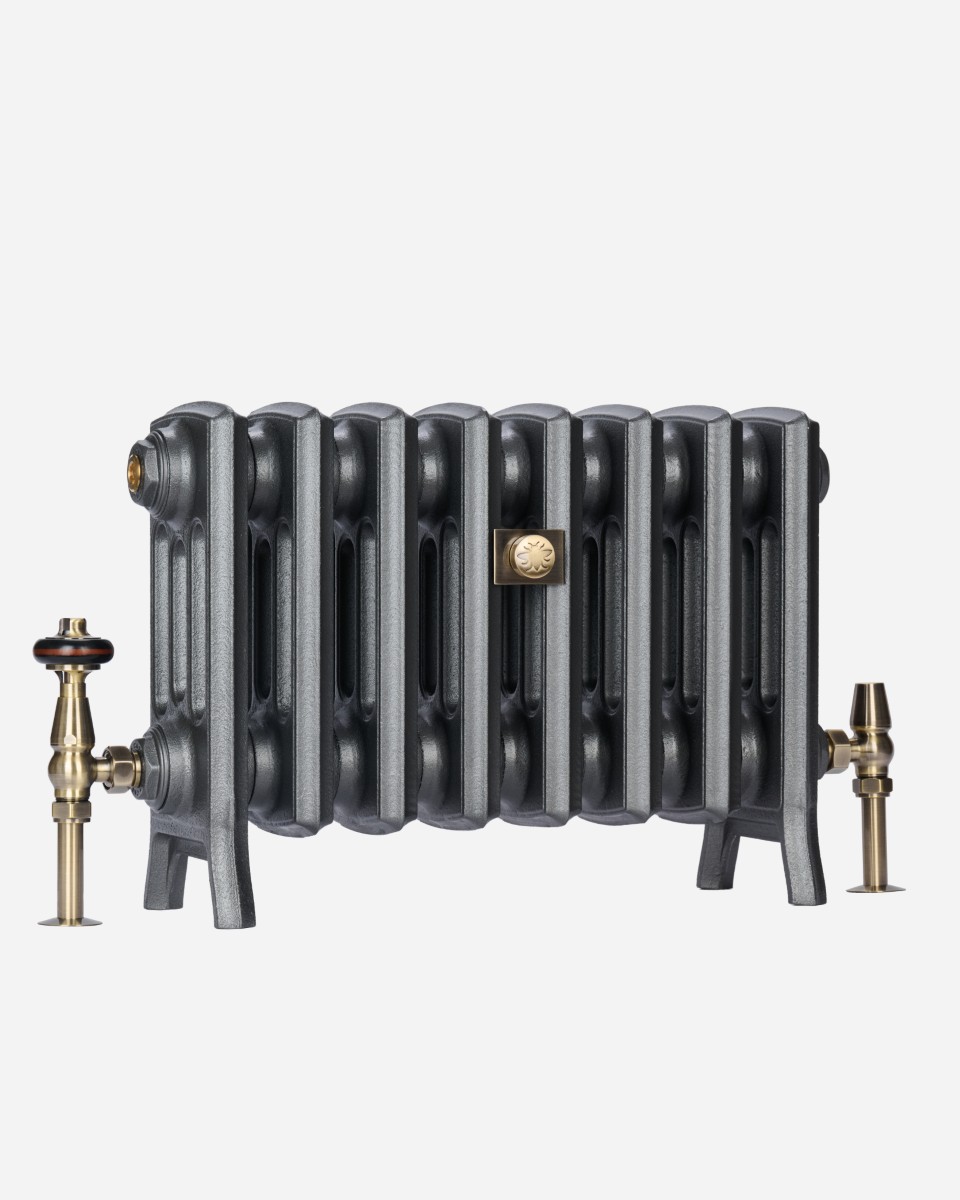

Grace 4 Column 14in
From: $797.00
Technical specs at 3 sections long:
| Length | Heat output (Hydronic) | ||
| Height | Heat output (Steam) | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Partial home assembly required for larger radiators
- Heat pump compatible
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs | 13.8 in |
| B | Bottom Inlet To Floor | 4.1 in |
| C | Max Section Depth | 6.9 in |
| D | Interaxis Distance | 7.9 in |
| E | Height Without Legs | 11.8 in |
| F | Section Length | 2.4 in |
| G | Mid Section Depth | 5.7 in |
| - | Internal Volume | 0.03 gal |
| - | Empty Leg Section Weight | 8.16 lb |
| - | Empty Mid Section Weight | 7.05 lb |
| - | Heating medium | Hydronic, One-pipe steam, Two-pipe steam |
| - | EDR Per Section | 1.16 ft² |
| - | Hydronic Output (170ºF) | 174 BTUs |
| - | Steam Output (215ºF) | 278 BTUs |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (Hydronic, 170ºF) |
Output (Steam, 215ºF) |
EDR | Delivery pieces |
Price from |
|---|---|---|---|---|---|---|---|
| CI-G4C-360-3 | 3 | 8.3 in | 522 BTUs | 834 BTUs | 3.5 ft² | 2 | $797.00 |
| CI-G4C-360-4 | 4 | 10.7 in | 696 BTUs | 1112 BTUs | 4.6 ft² | 2 | $871.00 |
| CI-G4C-360-5 | 5 | 13.1 in | 870 BTUs | 1390 BTUs | 5.8 ft² | 1 | $865.00 |
| CI-G4C-360-6 | 6 | 15.5 in | 1044 BTUs | 1668 BTUs | 7.0 ft² | 1 | $939.00 |
| CI-G4C-360-7 | 7 | 17.8 in | 1218 BTUs | 1946 BTUs | 8.1 ft² | 2 | $1,093.00 |
| CI-G4C-360-8 | 8 | 20.2 in | 1392 BTUs | 2224 BTUs | 9.3 ft² | 3 | $1,167.00 |
| CI-G4C-360-9 | 9 | 22.6 in | 1566 BTUs | 2502 BTUs | 10.4 ft² | 2 | $1,241.00 |
| CI-G4C-360-10 | 10 | 25.0 in | 1740 BTUs | 2780 BTUs | 11.6 ft² | 1 | $1,235.00 |
| CI-G4C-360-11 | 11 | 27.4 in | 1914 BTUs | 3058 BTUs | 12.8 ft² | 1 | $1,309.00 |
| CI-G4C-360-12 | 12 | 29.8 in | 2088 BTUs | 3336 BTUs | 13.9 ft² | 1 | $1,383.00 |
| CI-G4C-360-13 | 13 | 32.1 in | 2262 BTUs | 3614 BTUs | 15.1 ft² | 3 | $1,537.00 |
| CI-G4C-360-14 | 14 | 34.5 in | 2436 BTUs | 3892 BTUs | 16.2 ft² | 3 | $1,611.00 |
| CI-G4C-360-15 | 15 | 36.9 in | 2610 BTUs | 4170 BTUs | 17.4 ft² | 1 | $1,605.00 |
| CI-G4C-360-16 | 16 | 39.3 in | 2784 BTUs | 4448 BTUs | 18.6 ft² | 1 | $1,679.00 |
| CI-G4C-360-17 | 17 | 41.7 in | 2958 BTUs | 4726 BTUs | 19.7 ft² | 3 | $1,833.00 |
| CI-G4C-360-18 | 18 | 44.1 in | 3132 BTUs | 5004 BTUs | 20.9 ft² | 3 | $1,907.00 |
| CI-G4C-360-19 | 19 | 46.4 in | 3306 BTUs | 5282 BTUs | 22.0 ft² | 3 | $1,981.00 |
| CI-G4C-360-20 | 20 | 48.8 in | 3480 BTUs | 5560 BTUs | 23.2 ft² | 1 | $1,975.00 |
| CI-G4C-360-21 | 21 | 51.2 in | 3654 BTUs | 5838 BTUs | 24.4 ft² | 3 | $2,129.00 |
| CI-G4C-360-22 | 22 | 53.6 in | 3828 BTUs | 6116 BTUs | 25.5 ft² | 3 | $2,203.00 |
| CI-G4C-360-23 | 23 | 55.9 in | 4002 BTUs | 6394 BTUs | 26.7 ft² | 2 | $2,277.00 |
| CI-G4C-360-24 | 24 | 58.3 in | 4176 BTUs | 6672 BTUs | 27.8 ft² | 2 | $2,351.00 |
| CI-G4C-360-25 | 25 | 60.7 in | 4350 BTUs | 6950 BTUs | 29.0 ft² | 2 | $2,425.00 |
| CI-G4C-360-26 | 26 | 63.1 in | 4524 BTUs | 7228 BTUs | 30.2 ft² | 2 | $2,499.00 |
| CI-G4C-360-27 | 27 | 65.5 in | 4698 BTUs | 7506 BTUs | 31.3 ft² | 1 | $2,493.00 |
| CI-G4C-360-28 | 28 | 67.9 in | 4872 BTUs | 7784 BTUs | 32.5 ft² | 2 | $2,647.00 |
| CI-G4C-360-29 | 29 | 70.2 in | 5046 BTUs | 8062 BTUs | 33.6 ft² | 1 | $2,641.00 |
| CI-G4C-360-30 | 30 | 72.6 in | 5220 BTUs | 8340 BTUs | 34.8 ft² | 3 | $2,795.00 |
| CI-G4C-360-31 | 31 | 75.0 in | 5394 BTUs | 8618 BTUs | 36.0 ft² | 2 | $2,869.00 |
| CI-G4C-360-32 | 32 | 77.4 in | 5568 BTUs | 8896 BTUs | 37.1 ft² | 2 | $2,943.00 |
| CI-G4C-360-33 | 33 | 79.8 in | 5742 BTUs | 9174 BTUs | 38.3 ft² | 2 | $3,017.00 |
| CI-G4C-360-34 | 34 | 82.2 in | 5916 BTUs | 9452 BTUs | 39.4 ft² | 2 | $3,091.00 |
| CI-G4C-360-35 | 35 | 84.5 in | 6090 BTUs | 9730 BTUs | 40.6 ft² | 1 | $3,085.00 |
| CI-G4C-360-36 | 36 | 86.9 in | 6264 BTUs | 10008 BTUs | 41.8 ft² | 1 | $3,159.00 |
| CI-G4C-360-37 | 37 | 89.3 in | 6438 BTUs | 10286 BTUs | 42.9 ft² | 1 | $3,233.00 |
| CI-G4C-360-38 | 38 | 91.7 in | 6612 BTUs | 10564 BTUs | 44.1 ft² | 1 | $3,307.00 |
| CI-G4C-360-39 | 39 | 94.1 in | 6786 BTUs | 10842 BTUs | 45.2 ft² | 1 | $3,381.00 |
| CI-G4C-360-40 | 40 | 96.5 in | 6960 BTUs | 11120 BTUs | 46.4 ft² | 1 | $3,455.00 |
