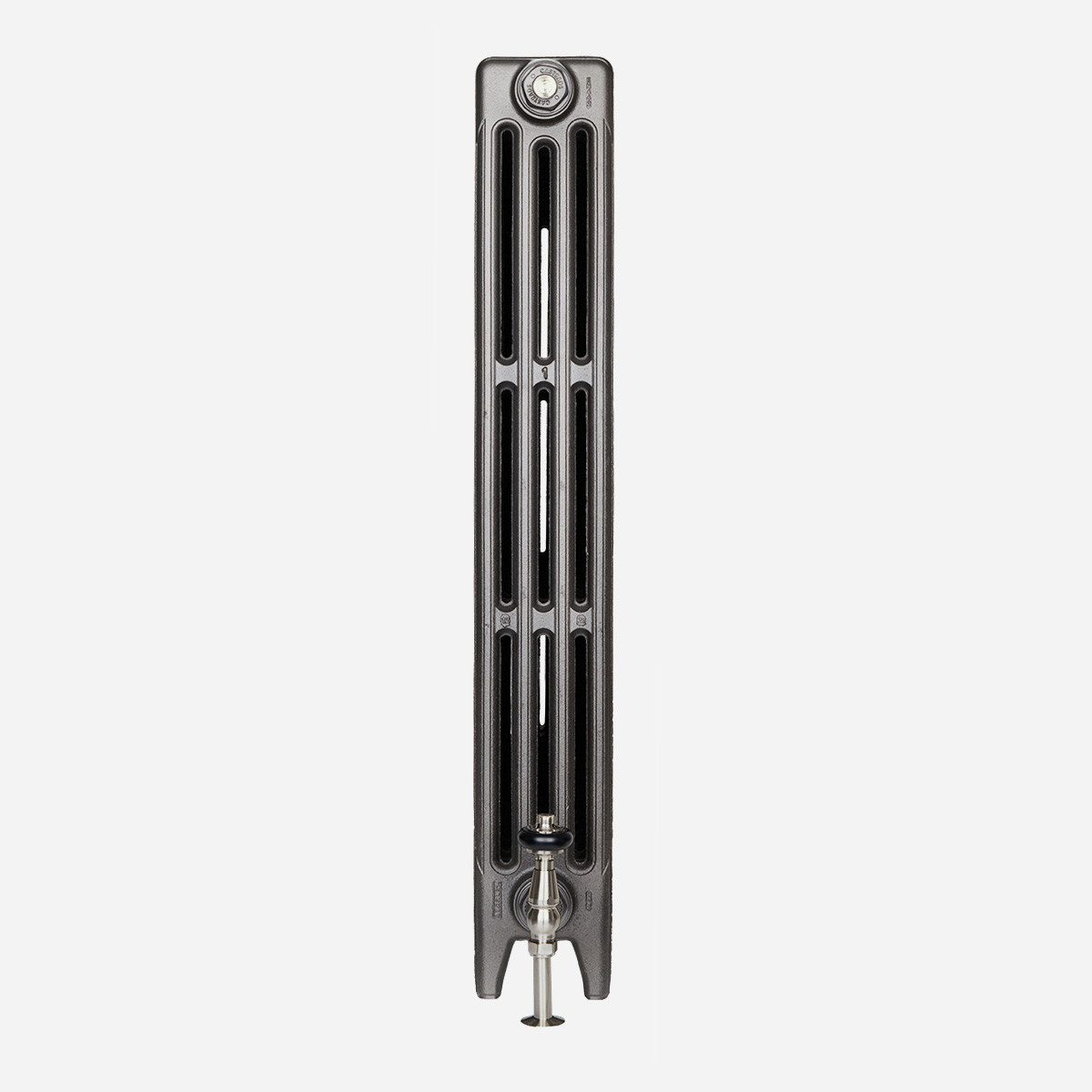

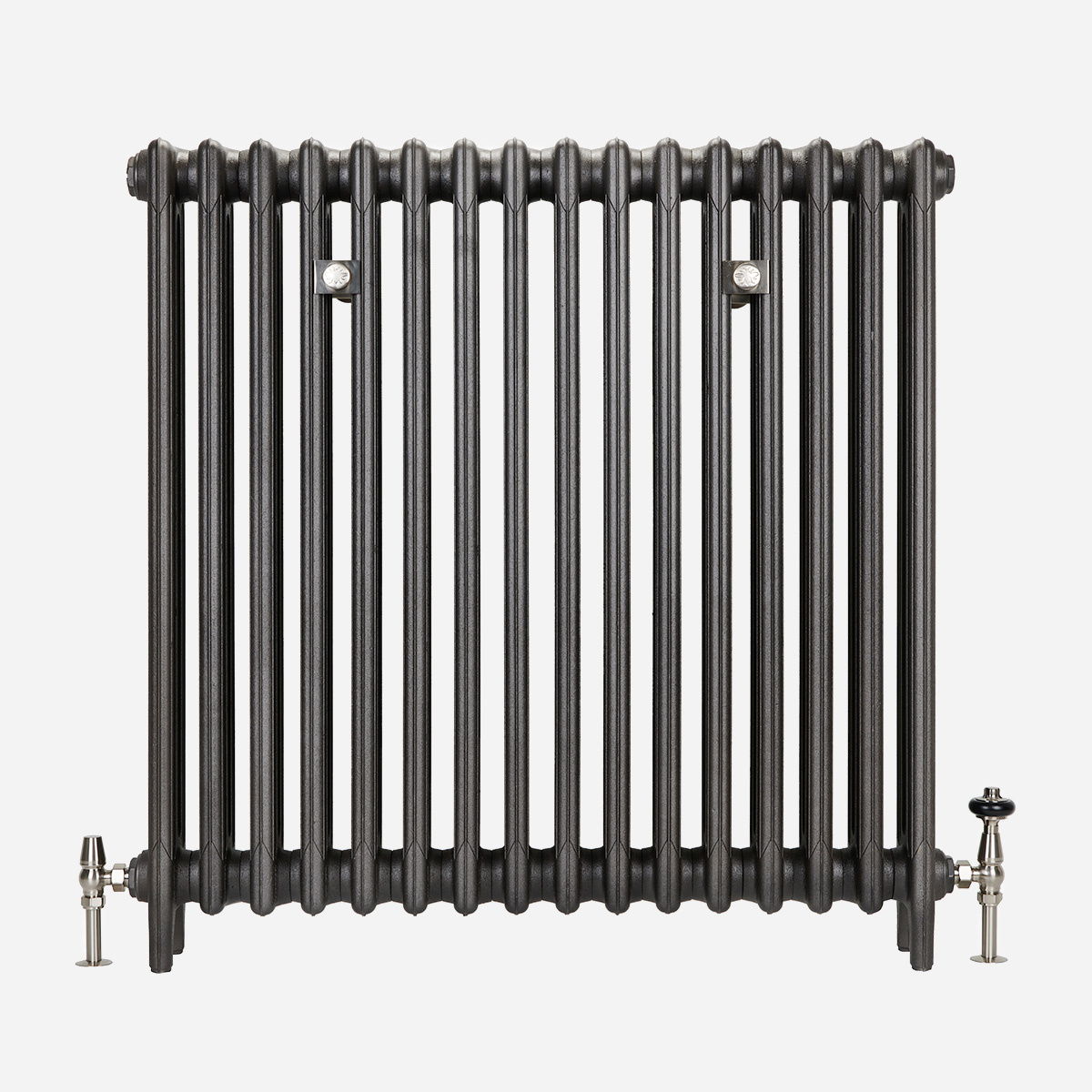

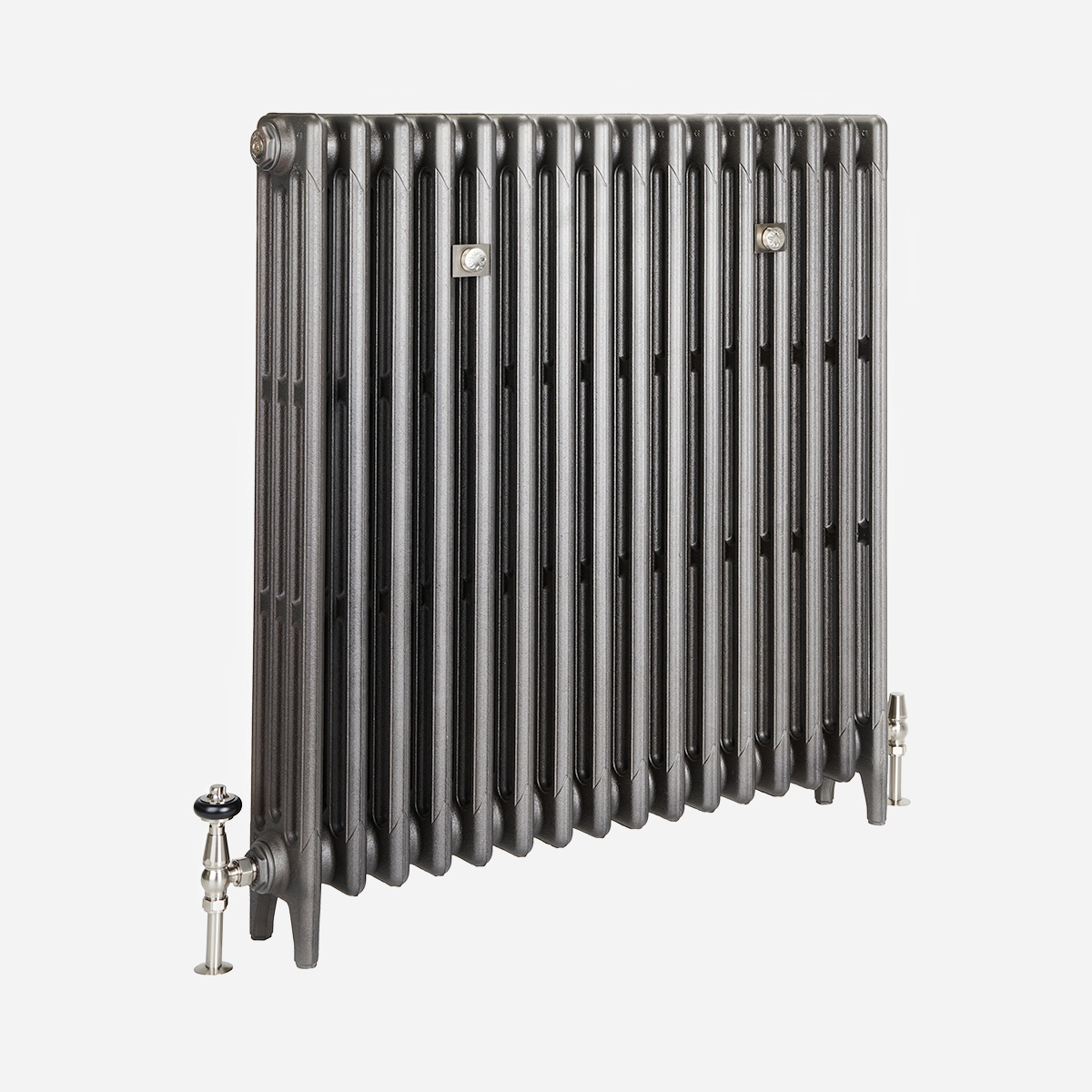

Mercury 4 Column 960mm
Cast Iron · by Castrads
From: £0.00
Technical specs at 3 sections long:
| Length | Heat output (∆T50) | ||
| Height | Pipe centres | ||
| Depth | Delivered in |
- Available from 3 to 40 sections long (see below for technical specs)
- Delivered ready to install up to 13 sections
- Partial home assembly required for larger radiators
- Heat pump compatible
- 5-6 weeks lead time
- 25 year warranty
- Made in England
Model Specifications
| Label | Attribute | Value |
|---|---|---|
| A | Height With Legs (mm) | 960 |
| B | Bottom Inlet To Floor (mm) | 100 |
| C | Max Section Depth (mm) | 140 |
| - | Output (ΔT50, W) | 122.3 |
| - | Output (ΔT30, W) | 62.4 |
| D | Interaxis Distance (mm) | 823 |
| E | Height Without Legs (mm) | 898 |
| F | Section Length (mm) | 58.3 |
| G | Mid Section Depth (mm) | 140 |
| - | Internal Volume (L) | 1.1 |
| - | Empty Leg Section Weight (kg) | 8.7 |
| - | Empty Mid Section Weight (kg) | 8 |
| - | Factor, Km | 0.7115 |
| - | Exponent, n | 1.3156 |
Sizes Available
| SKU | N Secs |
Length (L, mm) |
Output (∆T50, Watts) |
Output (∆T30, Watts) |
Delivery pieces |
Price from |
|---|---|---|---|---|---|---|
| CI-M4C-960-3 | 3 | 204 | 367 | 187 | 1 | £0.00 |
| CI-M4C-960-4 | 4 | 263 | 489 | 250 | 1 | £0.00 |
| CI-M4C-960-5 | 5 | 321 | 611 | 312 | 1 | £0.00 |
| CI-M4C-960-6 | 6 | 379 | 734 | 375 | 1 | £0.00 |
| CI-M4C-960-7 | 7 | 438 | 856 | 437 | 1 | £0.00 |
| CI-M4C-960-8 | 8 | 496 | 978 | 500 | 1 | £0.00 |
| CI-M4C-960-9 | 9 | 554 | 1100 | 562 | 1 | £0.00 |
| CI-M4C-960-10 | 10 | 613 | 1223 | 624 | 1 | £0.00 |
| CI-M4C-960-11 | 11 | 671 | 1345 | 687 | 1 | £0.00 |
| CI-M4C-960-12 | 12 | 729 | 1467 | 749 | 1 | £0.00 |
| CI-M4C-960-13 | 13 | 787 | 1590 | 812 | 1 | £0.00 |
| CI-M4C-960-14 | 14 | 846 | 1712 | 874 | 2 | £0.00 |
| CI-M4C-960-15 | 15 | 904 | 1834 | 937 | 2 | £0.00 |
| CI-M4C-960-16 | 16 | 962 | 1956 | 999 | 2 | £0.00 |
| CI-M4C-960-17 | 17 | 1021 | 2079 | 1062 | 2 | £0.00 |
| CI-M4C-960-18 | 18 | 1079 | 2201 | 1124 | 2 | £0.00 |
| CI-M4C-960-19 | 19 | 1137 | 2323 | 1186 | 2 | £0.00 |
| CI-M4C-960-20 | 20 | 1196 | 2446 | 1249 | 2 | £0.00 |
| CI-M4C-960-21 | 21 | 1254 | 2568 | 1311 | 2 | £0.00 |
| CI-M4C-960-22 | 22 | 1312 | 2690 | 1374 | 3 | £0.00 |
| CI-M4C-960-23 | 23 | 1370 | 2812 | 1436 | 3 | £0.00 |
| CI-M4C-960-24 | 24 | 1429 | 2935 | 1499 | 3 | £0.00 |
| CI-M4C-960-25 | 25 | 1487 | 3057 | 1561 | 3 | £0.00 |
| CI-M4C-960-26 | 26 | 1545 | 3179 | 1623 | 3 | £0.00 |
| CI-M4C-960-27 | 27 | 1604 | 3301 | 1686 | 3 | £0.00 |
| CI-M4C-960-28 | 28 | 1662 | 3424 | 1748 | 3 | £0.00 |
| CI-M4C-960-29 | 29 | 1720 | 3546 | 1811 | 3 | £0.00 |
| CI-M4C-960-30 | 30 | 1779 | 3668 | 1873 | 3 | £0.00 |
| CI-M4C-960-31 | 31 | 1837 | 3791 | 1936 | 3 | £0.00 |
| CI-M4C-960-32 | 32 | 1895 | 3913 | 1998 | 3 | £0.00 |
| CI-M4C-960-33 | 33 | 1953 | 4035 | 2061 | 3 | £0.00 |
| CI-M4C-960-34 | 34 | 2012 | 4157 | 2123 | 3 | £0.00 |
| CI-M4C-960-35 | 35 | 2070 | 4280 | 2185 | 3 | £0.00 |
| CI-M4C-960-36 | 36 | 2128 | 4402 | 2248 | 3 | £0.00 |
| CI-M4C-960-37 | 37 | 2187 | 4524 | 2310 | 3 | £0.00 |
| CI-M4C-960-38 | 38 | 2245 | 4646 | 2373 | 4 | £0.00 |
| CI-M4C-960-39 | 39 | 2303 | 4769 | 2435 | 3 | £0.00 |
| CI-M4C-960-40 | 40 | 2362 | 4891 | 2498 | 4 | £0.00 |
